Special armatures

2/2-way coaxial valve; Directly operated; G1"; 0...63bar; 24VDC; DN25; NC; Body: Stainless steel; Medium: Hydrogen Gaseous; Terminal box; Special seals; Incl. 2 inductive limit switches OPEN/CLOSED (B.); Incl. inspection certificate 3.1; Vacuum-test with certificate; ATEX CE Ex nA II T3 / CE Ex tc IIIC T195°C; Ex II 3G Ex h IIC T3 Gc; Ex II 3D Ex h IIIC T195°C Dc; Special version

FK40NC-505919

2/2-way coaxial valve, DN 40, PN16 0-16 bar, 24VDC, NC, direct-acting body: nickel-plated steel, medium: cooling water incl. terminal box and works certificate 3.1 ATEX II 2 G Eex me II T4 and II 2 D IP65 T 130°C ATEX Zone 1

3MB-5VMK15NC-522419

3-way module block consisting of 3 pcs 5-VMK15NC, G1", 0-16 bar, NC, externally piloted valve body: brass, medium: emulsion, incl. 5/2-way pilot valve, LED, end cover, special thread, 2x mounting brackets additional thread in the end cover G1"

6DR5020-0NG20-0AA0

I/P positioner for double-acting actuator, Sipart PS2, input 4-20mA, incl. 2 inductive limit switches P&F SJ-2SN (switch amplifier required)

CVCD-10-NC-002

2/2-way coaxial valve; Externally controlled; G3/8"; 0…250bar; DN10; NC; Body: Stainless steel; Medium: Hydrogen; Incl. certificate for vacuum; Incl. 2 inductive NAMUR limit switches OPEN/CLOSED (B.); Incl. inspection certificate EN-10204-3.1; Material certificate; ATEX Ex II 2G Ex h IIC T-20°C…+80°C Gb; Ex II 2D Ex h IIIC T-20°C…+80°C Db; Special version

CVCD3-10-NC-005

3/2-way-coaxial valve; Externally controlled; G3/8"; 0…250bar; DN10; NC; Body: Stainless steel; Medium: Hydrogen; Incl. certificate for vacuum; Incl. 2 inductive NAMUR limit switches OPEN/CLOSED (B.); Incl. inspection certificate EN-10204-3.1; Material certificate; ATEX Ex II 2G Ex h IIC T-20°C…+80°C Gb; Ex II 2D Ex h IIIC T-20°C…+80°C Db; Special version

CVFV-P-50-NC-002

2/2-way coaxial valve; Externally controlled; Flange DN50 PN40; 0...40bar; 24VDC; NC; Body: Zinc plated steel; Medium: Nitrogen/Air; Incl. 5/2-way pilot valve; Incl. LED; Incl. 2 inductive limit switches OPEN/CLOSED (B.); Helium leak rate test; Special version

CVCDH3-P-10-NC-001

3/2-way-lateral valve; Externally controlled; G3/8"; 0...500bar; 24VDC, DN10; NC; Body: Brass; Medium: Water; Incl. 5/2-way pilot valve; Incl. LED; Incl. 2 inductive limit switches OPEN/CLOSED (B.); Special version

CVFE-50-N0-001

2/2-way coaxial valve; Flange PN63 DN50; 0...63bar; NO; Externally controlled; Body: Zinc plated steel; Medium: Natural gas; Special seals; ATEX CE Ex II 2 GD c T4 Incl. inspection certificate 3.1; Piston made of stainless steel; Special version

CVF-25-NC-006

2/2-way coaxial valve; PN40; 0...40bar; 230VAC; DN25; NC; Directly operated; Body: Steel nickel plated; Medium: Heating oil/Air/Water; Special seals; Incl. mounting bracket; ATEX zone 2; Incl. 1 inductive limit switch Position CLOSED (B.); Incl. inspection certificate 3.1; Special version

4060412

4P5-1H000-11-20SF I/P positioner, 8049, digital 4-wire, 24VDC, 0-10V, high air capacity standard push rod, hysteresis 0.6% incl. RM2 module

MK32NC-515740

2/2-way coaxial valve, G 11/4" 0-64 bar, 24VDC, DN 32, NC, direct-acting Body: stainless steel, Medium: water 60°C incl. LED

CVCDH-15-NC-001

Coax-2/2-way-lateral valve; Externally controlled; Externally controlled; G3/8"; 0...600bar; DN15; NC; Body: Brass; Medium: Carbon dioxide Liquid; Special seals; Special version

CVCDH-15-NC-003

Coax-2/2-way-lateral valve; Externally controlled; G3/8"; 0...600bar; DN15; NC; Body: Brass; Medium: Carbon dioxide Liquid; Incl. 5/2-way pilot valve 24VDC; Incl. LED; Special seals; Special version

CVF-40-NC-004

2/2-way coaxial valve; PN63; 0…63bar; 24VDC; DN40; NC; Directly operated; Body: Zinc plated steel; Medium: Condensate; Special seals; ATEX zone 2; Incl. 1 inductive NAMUR limit switch (I.) Position CLOSED; Special version

CVTE-15-NC-048

2/2-way coaxial valve; G1/2"; 0...100bar; DN15; NC; externally controlled; body: stainless steel; medium: compressed air/nitrogen/forming gas; incl. 2 inductive limit switches OPEN/CLOSED (B); vacuum-test with certificate; incl. mounting bracket; leakage port; Special grease Krytox; namur control port; special version

4000170

Function unit; GS1-Valve; DN100; FB; Kvs-value 154 (100%); Characteristic Linear; Carbon - stainless steel

8040-GS1-050-4043468

050VB0001M------M6 GS shut-off valve type 8040 DN50 wafer body PN10-40, housing made of carbon steel 1.0570 chrome-plated, fixed sealing disc made of stainless steel 1.4571 coated, moving disc made of carbon material with metallic impregnation

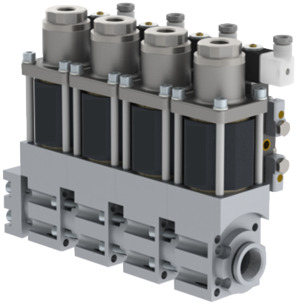

CV4TE-P-8-NC/N0-001

4-fold-Module block Consists of 3 Pieces CVMTE-P-10-NC-024 And 1 Pieces CVMTE-P-10-NO-007; Externally controlled; G1/4"; 0...100bar; 24VDC; DN8; Body: Brass, Medium: Helium/Nitrogen/Air; Incl. 5/2-way pilot valve; Incl. LED; Pressure inlet: Above Valves; Connection B In Module block; Connection Modulblock G1"; Special seals; Special version
