Special armatures

List prices MSP RO

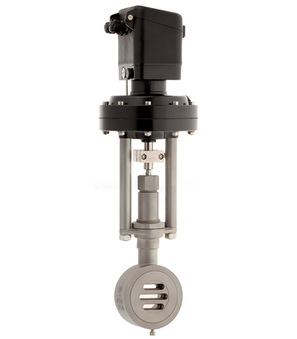

SG09-40-SWC1253-01
control valve type SG09, DN40; PN10/40; NC; housing: stainless steel AISI 316; fixed disc AISI 316Ti coated; sliding disc carbon material; kvs-value 16 (63%); characteristic linear; diaphragm actuator 125cm²; digital positioner 8049; 4-wire; IP65; backlash-free design; hysteresis setting 0,2%
CVF-65-NC-002
2/2-way coaxial valve; ANSI-RF 150 lb; 0...16bar; 24VDC; DN65; NC; Directly operated; Body: Stainless steel; Medium: Demineralized water/Heating oil 60°C; Terminal box; Special seals; Incl. 2 inductive limit switches OPEN/CLOSED (B.); Incl. inspection certificate 3.1; Special version

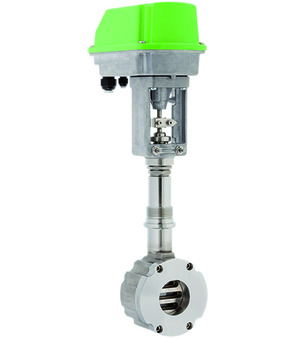

SG08-125-WWCECA-01
Control valve with electrical actuator Type SG08; DN125; PN10/40; Body: Stainless steel AISI 316, Fixed disc 1.4571; Sliding disc Carbon material; Kvs-value 95 (40%); Characteristic linear; Voltage 24V AC/DC; Control actuator CA24C; Setpoint value input 4-20mA; Position feedback 4-20 mA; 2 Limit switch; Operating time 12,5s
CVF-65-NC-004
2/2-way coaxial valve; ANSI-RF 150 lb; 0...16bar; 120V/60Hz; DN65; NC; Directly operated; Body: Stainless steel; Medium: Demineralized water/Heating oil 60°C; Special seals; Incl. 2 inductive limit switches OPEN/CLOSED (B.); Incl. inspection certificate 3.1; Special version
SG07-150-UWC2503-04
Control valve Type SG07, DN150; PN10/40; NC; Material: Zinc plated steel; Fixed disc 1.4571 Coated; Sliding disc Carbon material; Kvs-value 90 (63%); Characteristic Equal percentage; Diaphragm actuator 250cm²; Digital positioner; 4-wire; 4-20mA
CVF-65-N0-001
2/2-way coaxial valve; PN16; 0...16bar; 230VAC; DN65; NO; Directly operated; Body: Stainless steel; Medium: Hydrogen Gaseous; Special seals; Incl. 2 inductive limit switches OPEN/CLOSED (B.); Incl. inspection certificate 3.1; ATEX CE Ex nA II T3 And CE Ex tc IIIC T195°C; Special version
CVF-80-NC-010
2/2-way coaxial valve; Directly operated; PN16; 0...16bar; 24VDC; DN80; NC; Body: Stainless steel; Medium: Hydrogen Gaseous; Special seals; Vacuum-test with certificate; ATEX CE Ex nA II T3 / CE Ex tc IIIC T195°C; Ex II 3G Ex h IIC T3 Gc; Ex II 3D Ex h IIIC T195°C Dc; Special version
FU-SG-200-WF-01
Function unit; Sliding gate valve; DN100; Fixed disc Stainless steel AISI 316Ti coated; Sliding disc SFC; Kvs-value 560 (100%); Characteristic Linear
BS07-200-V-G
Ball sector valve; Wafer type; DN200; PN16; Body 1.4408/1.4404; Ball sector Stainless steel Polished; Seat ring PTFE; Seals made of FKM; KVS1365 (100%); Medium temperature -15...+170°C; Incl. Gear box
CVFV-80-NC-001
2/2-way coaxial valve; PN16; 0...16bar; DN80; NC; Externally controlled; Body: Stainless steel; Medium: Gear oil; Special seals; ATEX Area 1 And 21; Incl. 2 inductive NAMUR limit switches OPEN/CLOSED (I.); Special version
SG28-80-WWN1253-01
Control valve Type SG28; High temperature design; DN80; PN10/40; NO; Body: Stainless steel 1.4581 / 1.4571; Fixed disc STN2; Sliding disc STN2/STN3; Kvs-value 92 (100%); Characteristic linear; Diaphragm actuator 125cm², Spring configuration 6 Springs; Metal bellow Inconel 625; PTFE packing; Incl. 2 Inductive position indicator M12x1 10...30VDC
SG07-150-UWF2503-03
Control valve Type SG07, DN150; PN10/40; NC; Material: Zinc plated steel; Fixed disc 1.4571 Coated; Sliding disc SFC; Kvs-value 338 (100%); Characteristic Linear; Diaphragm actuator 250cm²; Digital positioner; 4-wire; 4-20mA
BS08-150-T-B-02
Ball sector valve; Wafer type; DN150; PN16; Body 1.4408/1.4404; Ball sector 1.4408 Hard chrome plated/Lapped surface; Seat ring Stellite; Seals FKM/PTFE; KVS 810 (100%); Medium temperature -15...+200°C; Incl. Adapter set DIN/ISO5211 F10- SW22
BS07-150-V-B
Ball sector valve; Wafer type; DN150; PN16; Body 1.4408/1.4404; Ball sector Stainless steel Polished; Seat ring PTFE; Seals made of FKM; KVS 810 (100%); Medium temperature -15...+170°C; Incl. Adapter set DIN/ISO5211 F10- SW22
BS08-150-T-D0-02
Ball sector valve With pneumatic actuator; Wafer type; DN150; PN16; Body 1.4408/1.4404; Ball sector 1.4408 Hard chrome plated/Lapped surface; Seat ring Stellite; Seals FKM/PTFE; KVS 810 (100%); Medium temperature -15...+200°C; Double acting actuator; Control pressure 5,5...8bar; Actuator PAD140
SG08-125-WWFECB-01
Control valve with electrical actuator Type SG08; DN125; PN10/40; Body: Stainless steel AISI 316, Fixed disc 1.4571; Sliding disc 1.4571/SFC; Kvs-value 237 (100%); Characteristic linear; Voltage 90-260VAC; Control actuator CA260C; Setpoint value input 4-20mA; Position feedback 4-20 mA; 2 Limit switch; Operating time 17s
CVFV-P-80-NC-001
2/2-way coaxial valve; PN16; 0...16bar; 24VDC; DN80; NC; Externally controlled; Body: Stainless steel; Medium: Gear oil; Incl. 5/2-way pilot valve; Special seals; Incl. 2 inductive NAMUR limit switches OPEN/CLOSED (I.); ATEX E Ex e II T5 Area 1 And 21; Special version
SG07-100-WWC250-02
Control valve Type SG07; DN100; PN10/40; NC; Material: 1.4408, Fixed disc 1.4571 Coated; Sliding disc Carbon material; Kvs-value 48 (100%), Characteristic equal percentage, Actuator diameter 250mm; Digital positioner With stainless steel base plate; 4-wire; 4-20mA; Free from parts From Antimony, Lead, Cadmium, Copper, Tin, Zinc, Brass, Bronze, Bronze And Aluminium alloys; Coupling, Fittings And Control line From Stainless steel
BS01-150-V-D0-01
Ball sector valve; Wafer type; DN150; PN16; Body 1.4408/1.4404; Ball sector 1.4408 Hard chrome plated/Lapped surface; Seat ring Stellite; Seals made of FKM; KVS 810 (100%); Medium temperature -15…+200°C; Incl. Pneumatic actuator Double acting PAD125
BS08-150-T-S0-01
Ball sector valve; Wafer type; DN150; PN16; Body 1.4408/1.4404; Ball sector 1.4408 Hard chrome plated/Lapped surface; Seat ring Stellite; Seals PTFE/FKM; KVS 810 (100%); Medium temperature -15...+200°C; Incl. Pneumatic actuator Single acting PAS1805
