Special armatures

2/2-way coaxial valve; PN16; 0...16bar; 24VDC; DN40; NO; Directly operated; Body: Steel nickel plated; Medium: Hydrogen 80°C; Special seals; Back pressure tight; Incl. mounting bracket; ATEX nA IIC T3 Ta -20…+80°C Gc And Ex tc IIIC T195°C Ta -20…+80°C Dc IP65; Incl. 2 inductive NAMUR limit switches OPEN/CLOSED (B.); Incl. inspection certificate 3.1; Special version

CVCRQ-32-004

Coax-Position control valve; G 11/2"; 0…63bar; DN32; 24VDC; Setpoint value input 4...20mA; Directly operated; With integrated 3-point control; Body: Brass; Medium: Grinding emulsion/Oil; Control tube Coated; Special version

CVCRQ-32-001

Coax-Position control valve; G 11/2"; 0…63bar; DN32; 24VDC; Setpoint value input 0...10V; Directly operated; With integrated 3-point control; Body: Brass; Medium: Grinding emulsion/Oil; Control tube Coated; Special version

RMQ32-543710

Coax position control valve, G 11/2" 0-64 bar, DN32, 24VDC, setpoint input 0-10V direct operated, with integrated 3-point control Body: brass, Medium: emulsion/oil incl. cable socket and actual value output

SG06-50-UWN80-03

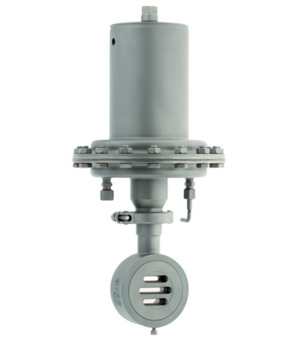

Control valve Type SG06; DN50; PN10/40; NC; Material: Zinc plated steel, Fixed disc STN2; Sliding disc STN2/STN3; Kvs-value 45 (100%), Characteristic linear; Actuator diameter 80mm; I/P-positioner Incl. cable; 8047 With position indicator; IP54

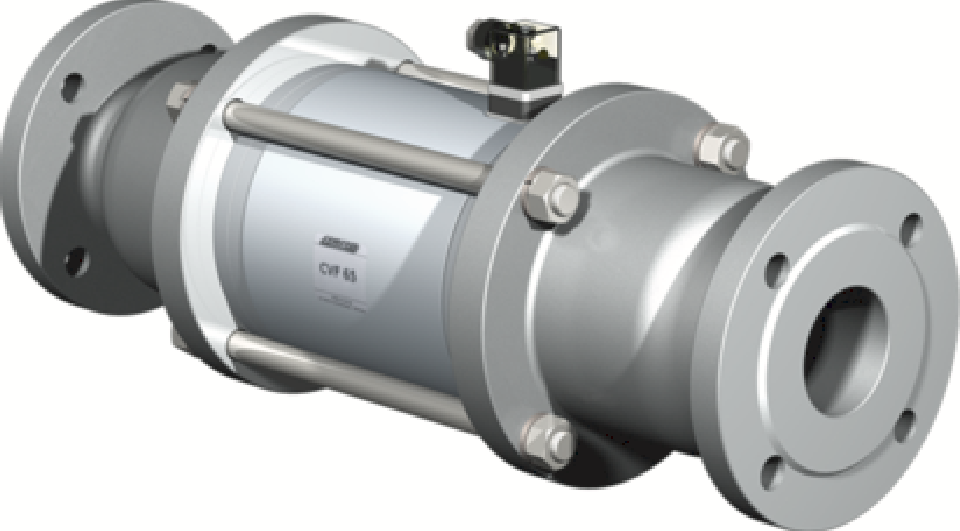

CVF3-50-N0-001

3/2-way-coaxial valve; Directly operated; Flange DN50 PN16; 0...16bar; 24VDC; NO; Body: Zinc plated steel; Medium: Oil; Incl. LED; Incl. special seals; Special version

SG26-15-WWC4/10

Overflow valve Type SG26; DN15; PN10/40; Material: 1.4571/1.4581, Fixed disc 1.4571 Coated; Sliding disc Carbon material; Kvs-value 2,6 (63%); Characteristic linear; Pressure range 4-10 bar

SG19-20-UWC80-01

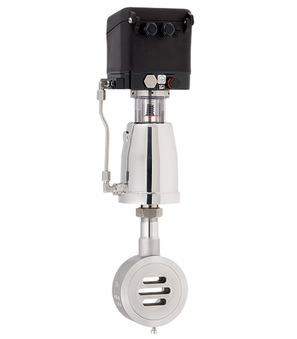

Control valve Type SG19, DN20; ANSI150; NC; Material: 1.0570/1.0619; Fixed disc 1.4571 Coated; Sliding disc Carbon material; Kvs-value 6,4 (100%); Characteristic Linear; Piston actuator 80mm; Digital positioner; 4-wire; 4-20mA

BS09-40-P-B

Ball sector valve; Wafer type; DN40; PN40; Body 1.4408/1.4404; Ball sector 1.4408 Hard chrome plated/Lapped surface; Seat ring PEEK; Seals PTFE/O-ring Silicone PFA-Coated; KVS 70 (100%); Medium temperature -60...+220°C; Bare shaft; Mounting flange F05; Square 14mm

5-VSV-F100NC-502029

2/2-way coaxial valve; PN16; 0...16bar; 24VDC, DN100; NC; Externally controlled; Body: Aluminum; Medium: Emulsion; Incl. 5/2-way pilot valve; Special version

CVT-40-NC-035

2/2-way coaxial valve; Directly operated; G2"; 0...63bar; 24VDC; DN40; NC; Body: Stainless steel; Medium: Hydrogen Gaseous; Terminal box; Special seals; Incl. 2 inductive limit switches OPEN/CLOSED (B.); Incl. inspection certificate 3.1; Vacuum-test with certificate; ATEX CE Ex nA II T3 / CE Ex tc IIIC T195°C; Ex II 3G Ex h IIC T3 Gc; Ex II 3D Ex h IIIC T195°C Dc; Special version

SG06-15-WWC80-01

Control valve Type SG06, DN15; PN10/40; NC; Material: 1.4408; Fixed disc 1.4571 Coated; Sliding disc Carbon material; Kvs-value 0,49 (12%); Characteristic Linear; Actuator diameter 80mm; Digital positioner; 4-wire

SG06-15-WWC80-03

Control valve Type SG06, DN15; PN10/40; NC; Material: 1.4408; Fixed disc 1.4571 Coated; Sliding disc Carbon material; Kvs-value 1,4 (25%); Characteristic Linear; Actuator diameter 80mm; Digital positioner; 4-wire

SG06-25-UWC80-01

Control valve Type SG06; DN25; PN10/40; NC; Material: Carbon steel, Fixed disc 1.4571 Coated; Sliding disc Carbon material; Kvs-value 11 (100%), Characteristic linear, Actuator diameter 80mm; Digital positioner; 2-wire; 4-20mA

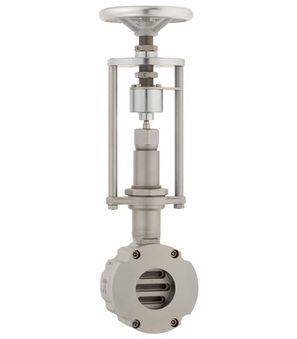

SG01-100-UWCW

Manually operated sliding gate valve; Actuation by handwheel; Type SG01; Nominal diameter DN100; PN16/40; Wafer type; Aluminum handwheel, Medium temperature -10...300°C; Material: Zinc plated steel; Fixed disc 1.4571 Coated; Sliding disc Carbon material; Kvs-value 154 (100%); Pressure range 0-24bar
