Special armatures

List prices MSP RO

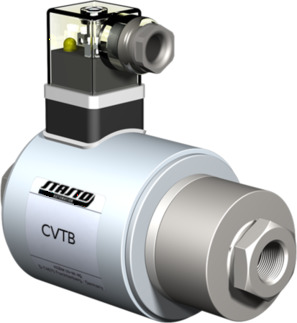

CVTB-3-NC-046
2/2-way high pressure valve; 3/8"NPT"; 0…250bar; 230VAC; DN3; NC; directly operated; body: stainless steel; medium: water; incl. LED; incl. inspection certificate 3.1; incl. material certificate; special version
SK-CVTB-3-NC-046
seal kit for CVTB-3-NC-046
CVT-15-N0-076
2/2-way coaxial valve; G1/2"; 0...16bar; 24VDC; DN15; NO; Directly operated; Body: Stainless steel; Medium: Dry air; Control tube PTFE-coated; Coil with connection M12x1; Special seals; Special version
SG22-15-SWCW-01
manually operated sliding gate valve type SG22; DN15; ANSI300; body material AISI 316; fixed disc AISI 316Ti-coated; sliding disc Carbon material; kvs-value 0,44 (10%); characteristic linear; design for gaseous hydrogen; medium temperature max. +200°C
SG22-15-SWCW-02
manually operated sliding gate valve type SG22; DN15; ANSI300; body material AISI 316; fixed disc AISI 316Ti-coated; sliding disc Carbon material; kvs-value 0,44 (10%); characteristic linear; incl. metal bellow; design for gaseous hydrogen; medium temperature max. +200°C
CVTV-50-NC-003
2/2-way coaxial valve; externally controlled; 2"NPT; 0...40bar; DN50; NC; body: stainless steel; medium: nitrogen/hydrogen; special seals; inspection certificate 3.1; special valve testing; leakage rate A; ATEX Ex II 2G Ex h IIC T-20°C…+70°C Gb; Ex II 2D Ex h IIIC T-20°C…+70°C Db; IECEx EPS 23.0010X; type plate stainless steel; Ex-protection class Process room EPS 19 ATEX 2 170X; special version
CVTEH-25-NC-005
2/2-way coaxial valve; externally controlled; 1"NPT; 0...200bar; DN25; NC; body: stainless steel; medium: hydrogen; special seals; 2 limit switch Namur (B); inspection certificate 3.1; special valve testing; ATEX Ex II 2G Ex h IIC T-20°C…+70°C Gb; Ex II 2D Ex h IIIC T-20°C…+70°C Db; special version
CVTEH-25-NC-006
2/2-way coaxial valve; externally controlled; 1"NPT; 0...40bar; DN25; NC; body: stainless steel; medium: nitrogen/hydrogen; special seals; 2 limit switch Namur (B.); inspection certificate 3.1; special valve testing; leakage rate A; ATEX Ex II 2G Ex h IIC T-20°C…+70°C Gb; Ex II 2D Ex h IIIC T-20°C…+70°C Db; IECEx EPS 23.0010X; type plate stainless steel; Ex-protection class Process room EPS 19 ATEX 2 170X; special version
CVTE-15-NC-061
2/2-way coaxial valve; externally controlled; 3/4"NPT; 0...40bar; DN15; NC; body: stainless steel; medium: nitrogen/hydrogen; special seals; 2 limit switch Namur (B.); inspection certificate 3.1; special valve testing; leakage rate A; ATEX Ex II 2G Ex h IIC T-20°C…+70°C Gb; Ex II 2D Ex h IIIC T-20°C…+70°C Db; special version
CVT-15-NC-500
2/2-way coaxial valve; directly operated; G1/2"; 0...40bar; 230VAC; DN15; NC; body: brass; medium: oil; incl. LED; special seals; special version
CVTB-3-NC-047
2/2-way coaxial valve; directly operated; G3/8"; 0…250bar; 24VDC; DN3; NC; body: AISI 430F/steel nickel plated; medium: hydrogen gaseous; terminal box; Vacuum leak test with certificate; Special material for low temperatures; ATEX CE Ex II 3G Ex ec IIC T3 Ta -20...+80°C Gc / CE Ex II 3D Ex tc IIIC T195°C Ta -20...+80°C Dc and Ex II 3G Ex h IIC T3 Gc / Ex II 3D Ex h IIIC T195°C Dc; special version
CVTB-4-NC-013
2/2-way coaxial valve; directly operated; G3/8"; 0…120bar; 24VDC; DN4; NC; body: AISI 430F/steel nickel plated; medium: hydrogen gaseous; terminal box; Vacuum leak test with certificate; Special material for low temperatures; ATEX CE Ex II 3G Ex ec IIC T3 Ta -20...+80°C Gc / CE Ex II 3D Ex tc IIIC T195°C Ta -20...+80°C Dc and Ex II 3G Ex h IIC T3 Gc / Ex II 3D Ex h IIIC T195°C Dc; special version
VS-CVTE-P-20-NC-006
valve seat for CVTE-P-20-NC-006
CVT-10-NC-537
2/2-way coaxial valve; G1/2"; 0...16bar; 24VDC; DN10; NC; directly operated; body: brass; medium: air; ATEX II 3G Ex ec IIC T3 Ta -20…+80°C Gc / II 3D Ex tc IIIC T195°C Ta -20…+80°C Dc and II 3G Ex h IIC T3 Gc / II 3D Ex h IIIC T195°C Dc; IP65; special version

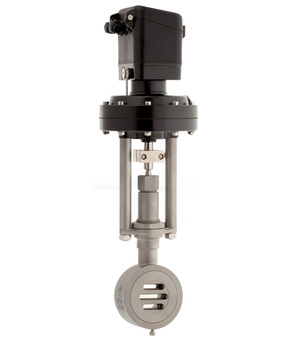

SEC03-50-SP250-01
flange-control valve; NC; material: AISI 316, seal PTFE; flange PN40; DN 50mm; kvs-value 33,5 (100%), characteristic linear, diaphragm actuator 250cm²; medium temperature 160...220°C; operating pressure 0-10bar; digital positioner; 4-wire; 4-20mA;
SG09-50-UWN125-01
control valve type SG09, DN50; PN40; NC; material: zinc plated steel; fixed disc STN2; sliding disc STN2/STN3; kvs-value 45 (100%); characteristic linear; diaphragm actuator 125cm²; medium temperature max. 220°C; operating pressure 0-18bar;digital positioner; 4-wire; 4-20mA
CVT-25-NC-170
2/2-way coaxial valve; directly operated; G11/2"; 0...16bar; 230VAC; DN25; NC; body: stainless steel; medium: 10% citric acid solution 50°C; special seals; special version
CVT-15-N0-078
2/2-way coaxial valve; directly operated; G1/2"; 0...40bar; 24VDC; DN15; NO; body: stainless steel; medium: hydrogen; medium temperature 5...+90°C; incl. LED; special seals; incl. 1 inductive limit switch (I) for closed-position; special version
CVT-15-NC-502
2/2-way coaxial valve; G1/2"; 0…100bar; 24VDC; DN15; NC; directly operated; body: stainless steel; medium: natural gas; ATEX II 3G Ex nA IIC T3 Ta -20...+80°C Gc / II 3D Ex tc IIIC T195°C Ta -20...+80°C Dc IP65 and II 3 GD c T4; special version
CVT-10-NC-539
2/2-way coaxial valve; directly operated; G1/2"; 0...16bar; 24VDC; DN10; NC; body: brass; medium: water 120°C; without connector; special seals; Neutral nameplate; special version
