Special armatures

List prices MSP RO
CVTB-3-NC-044
2/2-way coaxial valve; directly operated; G1/4"; 0…250bar; 230VAC; DN3; NC; body: AISI 430F/steel nickel plated; medium: carbon dioxide; special version
CVT-10-NC-514
2/2-way coaxial valve; Directly operated; G1/4"; DN8mm; 0...100bar; 230VAC; NC; Body: Brass; Medium: Hydrogen; Special seals; Incl. certificate for vacuum; ATEX CE Ex nA II T3 / CE Ex tc IIIC T195°C; Ex II 3G Ex h IIC T3 Gc; Ex II 3D Ex h IIIC T195°C Dc; Special version
CVTEH-10-NC-006
2/2-way coaxial valve; G3/8"; 0...200bar; DN10; NC; externally controlled; body: stainless steel; medium: water; incl. mounting bracket; special version
CVTEH-10-NC-006-ABS56-C001-03-C002-31-6
CVTEH-10-NC-006
2/2-way coaxial valve; G3/8"; 0...200bar; DN10; NC; externally controlled; body: stainless steel; medium: water; incl. mounting bracket; special version
ABS56
mounted pilot valve; speed control; suitable for 2/2-way coaxial valve and 3/2-way-coaxial valve; externally controlled; DN15...DN50; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR)
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
SG09-15-UWN1253-02
control valve type SG09, DN15; PN40; NC; body carbon steel A216-WCB zinc plated; fixed disc STN2; sliding disc STN2/STN3; kvs-value 1,1 (40%); characteristic equal percentage; diaphragm actuator 125cm²; digital positioner 8049 4-wire; control signal 4-20mA
CVTE-P-10-NC-066
2/2-way coaxial valve; externally controlled; G1/4"; 0...100bar; 24VDC, DN8; NC; body: brass; medium: emulsion; incl. 5/2-way pilot valve; incl. LED; special seals; special version
CVTS-2-N0-014
Coax-2/2-way-lateral valve; Directly operated; SAE 9/16-18; 0...300bar; 120VAC; DN2; NO; Body: Brass; Medium: Hydraulic oil; Terminal box; Special seals; Test report 2.2; Special version
CP-BA034-20
connection part for ball valve BA034-20
CVF-40-NC-045
2/2-way coaxial valve; directly operated; flange DN40; ANSI-RF 600 lb; 0...63bar; 24VDC; NC; body: steel nickel plated; medium: condensate 100°C; special seals; incl. 2 inductive limit switches OPEN/CLOSED (B.HT); incl. LED; incl. inspection certificate 3.1; special version
SG07-65-WWN1253-03
control valve type SG07, DN65; PN10/40; NC; material: AISI 316Ti/AISI 316Ti; fixed disc STN2; sliding disc STN2/STN3; kvs-value 52 (100%); characteristic linear; diaphragm actuator 125cm²; digital positioner; 4-wire; 4-20mA
SG06-50-WWN125-01
control valve type SG06; DN50; PN10/40; NC; material: AISI 316Ti/AISI 316Ti respectively AISI 316/AISI 316, fixed disc STN2; sliding disc STN2/STN3; kvs-value 45 (100%), characteristic linear, actuator diameter 125mm; analog P/P-positioner
CVT-10-NC-515
2/2-way coaxial valve; G1/2"; 0...16bar; 24VDC; DN10; NC; Directly operated; Body: Brass; Medium: Cooling water; Special version
CVMTE-P-15-NC-021
2/2-way coaxial valve; externally controlled; G3/4"; 0...100bar; DN15; 24VDC; NC; body: brass; medium: emulsion; incl. 5/2-way pilot valve; coil with connection M12x1-DESINA; valve with connection for mounting on a module; special version

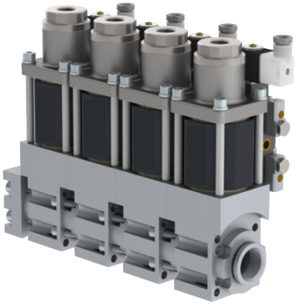

CV4TE-P-15-NC-004
4-fold-module block consists of 4 pieces CVMTE-P-15-NC-021; 2/2-way coaxial valve; G3/4"; 0...100bar; 24VDC; DN15; NC; externally controlled; body: brass; medium: emulsion; incl. 5/2-way pilot valve; coil with connection M12x1-DESINA; incl. mounting bracket; special version
CV5T-20-NC-002
5-fold-Module block Consists of 5 Pieces CVMT-20-NC-002; 2/2-way coaxial valve; Directly operated; G 3/4"; 0…16bar; 24VDC; DN20; NC; Body: Brass; Medium: Emulsion; Incl. LED; Module Aluminum; Additional thread in end plate; Special version

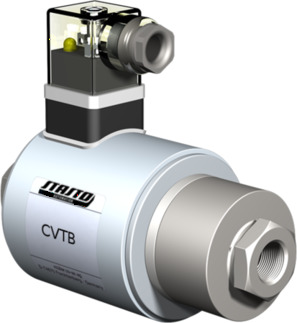

CVTB-6-NC-003
2/2-way coaxial valve; G3/8"; 0…50bar; 24VDC; DN6; NC; directly operated; body: AISI 430F/steel nickel plated; medium: helium/air; incl. LED; special version
SG07-150-WWC1253-01
control valve type SG07, DN150; PN10/40; NC; material: AISI 316Ti/AISI 316Ti; fixed disc AISI 316Ti coated; sliding disc carbon material; kvs-value 338 (100%); characteristic linear; diaphragm actuator 125cm²; incl. coupler for positioner Eckardt, ABB-TZID/TZID-C, Siemens-PS2, Samson-3730/DVC2000
SG07-150-WWC1253-02
control valve type SG07, DN150; PN10/40; NC; material: AISI 316Ti/AISI 316Ti; fixed disc AISI 316Ti coated; sliding disc carbon material; kvs-value 338 (100%); characteristic linear; diaphragm actuator 125cm²; mounted I/P-positioner SIPART PS2; input signal 4-20mA
SG07-125-WWC1253-01
control valve type SG07, DN125; PN10/40; NC; material: AISI 316Ti/AISI 316Ti; fixed disc AISI 316Ti coated; sliding disc carbon material; kvs-value 237 (100%); characteristic linear; diaphragm actuator 125cm²; incl. coupler for positioner Eckardt, ABB-TZID/TZID-C, Siemens-PS2, Samson-3730/DVC2000
SG07-125-WWC1253-02
control valve type SG07, DN125; PN10/40; NC; material: AISI 316Ti/AISI 316Ti; fixed disc AISI 316Ti coated; sliding disc carbon material; kvs-value 237 (100%); characteristic linear; diaphragm actuator 125cm²; mounted I/P-positioner SIPART PS2; input signal 4-20mA
