Pressure switches, measuring instruments and flow monitors

List prices MSP RO

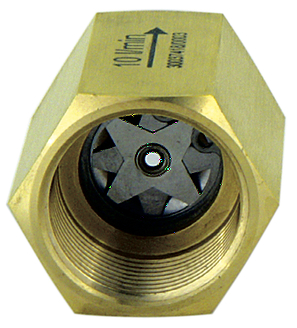

Flow limiter Series BB

Flow limiter Series BB

Brass; Female thread/Male thread

To Series: Flow limiter Series BB
Grundversion
Connection Flow rate Type Sequence
3/4" 12 l/min BB-3/4"-MS-12 33170000
3/4" 20 l/min BB-3/4"-MS-20 33170001
3/4" 30 l/min BB-3/4"-MS-30 33170002
FM42-14-N-1,3

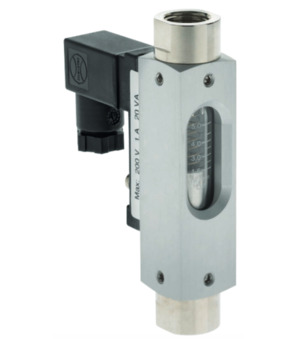

Flow monitors With Inspection glass Series FM42-N; Connections, Float Nickel plated brass; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Air scale; Switching range at 1 bar absolute; 20°C; NO contact; Connection 1/4"; Switching range 0,2...1,3Nl/min; Maximum pressure 16bar; U max. AC140/DC200V; I max. AC0,7/DC1A; Length 90mm
To Series: Flow monitors With Inspection glass Series FM42-N
Connection Length U max. I max. Maximum pressure Switching range Type
1/4" 90 mm AC140/DC200 V AC0,7/DC1 A 16 bar 0,2...1,3 Nl/min FM42-14-N-1,3
BA-1/2"-MS-12
Flow limiter Series BA; Brass; Female thread; Connection 1/2"; Flow rate 12l/min
To Series: Flow limiter Series BA
Connection Flow rate Type
1/2" 12 l/min BA-1/2"-MS-12
FM42-14-N-3
Flow monitors With Inspection glass Series FM42-N; Connections, Float Nickel plated brass; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Air scale; Switching range at 1 bar absolute; 20°C; NO contact; Connection 1/4"; Switching range 0,8...3Nl/min; Maximum pressure 16bar; U max. AC140/DC200V; I max. AC0,7/DC1A; Length 90mm
To Series: Flow monitors With Inspection glass Series FM42-N
Connection Length U max. I max. Maximum pressure Switching range Type
1/4" 90 mm AC140/DC200 V AC0,7/DC1 A 16 bar 0,8...3 Nl/min FM42-14-N-3
Flow limiter Series BA

Flow limiter Series BA

Brass; Female thread
To Series: Flow limiter Series BA
Grundversion
Connection Flow rate Type Sequence
1/2" 6 l/min BA-1/2"-MS-6 33180001
1/2" 6 l/min BA-1/2"-MS-8 33180002
Flow monitors With Inspection glass Series FM42-N

Flow monitors With Inspection glass Series FM42-N

Connections, Float Nickel plated brass; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Air scale; Switching range at 1 bar absolute; 20°C; NO contact
To Series: Flow monitors With Inspection glass Series FM42-N
Grundversion
Connection Length U max. I max. Maximum pressure Switching range Type Sequence
1/4" 90 mm AC140/DC200 V AC0,7/DC1 A 16 bar 1,5...5 Nl/min FM42-14-N-5 33180002
1/4" 90 mm AC140/DC200 V AC0,7/DC1 A 16 bar 3...12 Nl/min FM42-14-N-12 33180003
BA-1/2"-MS-10
Flow limiter Series BA; Brass; Female thread; Connection 1/2"; Flow rate 10l/min
To Series: Flow limiter Series BA
Connection Flow rate Type
1/2" 10 l/min BA-1/2"-MS-10
FM42-14-N-35
Flow monitors With Inspection glass Series FM42-N; Connections, Float Nickel plated brass; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Air scale; Switching range at 1 bar absolute; 20°C; NO contact; Connection 1/4"; Switching range 10...35Nl/min; Maximum pressure 16bar; U max. AC140/DC200V; I max. AC0,7/DC1A; Length 90mm
To Series: Flow monitors With Inspection glass Series FM42-N
Connection Length U max. I max. Maximum pressure Switching range Type
1/4" 90 mm AC140/DC200 V AC0,7/DC1 A 16 bar 10...35 Nl/min FM42-14-N-35
Flow limiter Series BA

Flow limiter Series BA

Brass; Female thread
To Series: Flow limiter Series BA
Grundversion
Connection Flow rate Type Sequence
1/2" 21 l/min BA-1/2"-MS-21 33180004
1/2" 4 l/min BA-1/2"-MS-4 33180005
Flow monitors With Inspection glass Series FM42-N

Flow monitors With Inspection glass Series FM42-N

Connections, Float Nickel plated brass; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Air scale; Switching range at 1 bar absolute; 20°C; NO contact
To Series: Flow monitors With Inspection glass Series FM42-N
Grundversion
Connection Length U max. I max. Maximum pressure Switching range Type Sequence
1/4" 90 mm AC140/DC200 V AC0,7/DC1 A 16 bar 10...42 Nl/min FM42-14-N-42 33180005
1/2" 114 mm 230 V 3 A 16 bar 3...12 Nl/min FM42-12-N-12 33180006
Flow limiter Series BA

Flow limiter Series BA

Brass; Female thread
To Series: Flow limiter Series BA
Grundversion
Connection Flow rate Type Sequence
1/2" 5 l/min BA-1/2"-MS-5 33180006
3/4" 15 l/min BA-3/4"-MS-15 33180007
3/4" 8 l/min BA-3/4"-MS-8 33180008
FM42-12-N-40
Flow monitors With Inspection glass Series FM42-N; Connections, Float Nickel plated brass; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Air scale; Switching range at 1 bar absolute; 20°C; NO contact; Connection 1/2"; Switching range 12…40Nl/min; Maximum pressure 16bar; U max. 230V; I max. 3A; Length 114mm
To Series: Flow monitors With Inspection glass Series FM42-N
Connection Length U max. I max. Maximum pressure Switching range Type
1/2" 114 mm 230 V 3 A 16 bar 12...40 Nl/min FM42-12-N-40
