Pressure regulators, safety valves and accessories

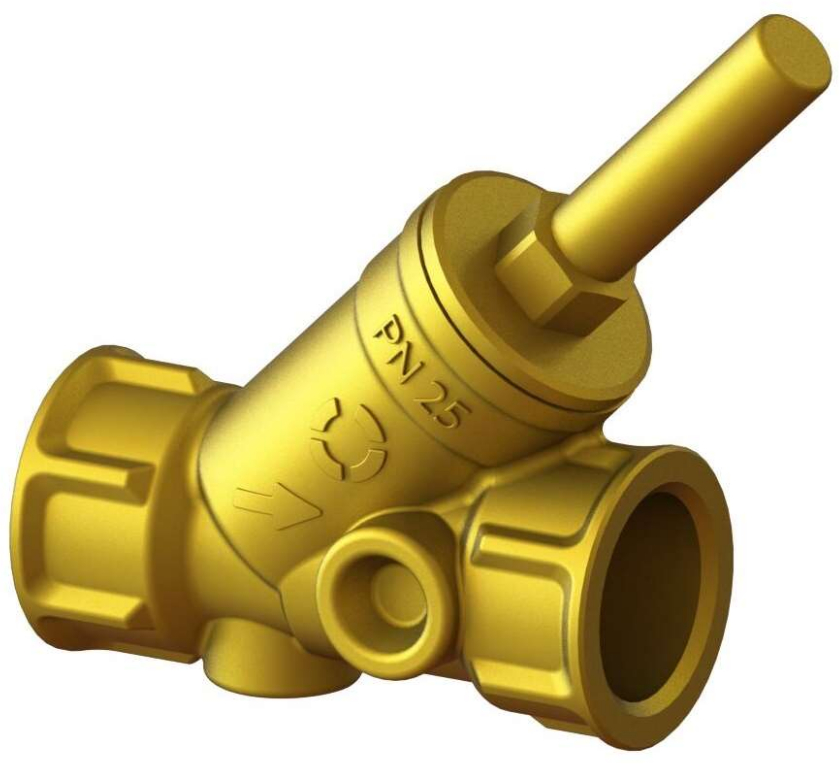

CH117-112
Angle seat check valve Series CH117; Spring loaded; Body, Inner parts Brass; Seal FKM; Pressure range 0,04…25bar; Medium temperature 0…+100°C; Connection G 11/2"; Length 120mm
To Series: Angle seat check valve Series CH117
Female thread Length Operating pressure Seal Medium temperature Type
G 1 1/2" 120 mm 0,04...25 bar FKM 0...100 °C CH117-112

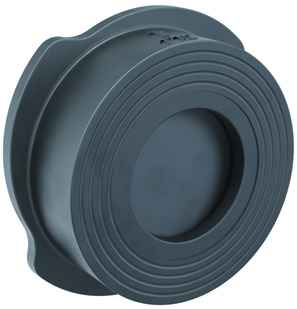

CH009-40
Check valve Series CH009; Wafer type; Body 1.4408; Disc 1.4404; Metal sealing; Medium temperature -55…+250°C; DN 40mm; Length 32mm; Nominal flange pressure PN6/10/16/25/40, ANSI150/300
To Series: Check valve Series CH009
DN Length Flange Type
40 mm 32 mm PN6/10/16/25/40, ANSI150/300 CH009-40
CH117-20
Angle seat check valve Series CH117; Spring loaded; Body, Inner parts Brass; Seal FKM; Pressure range 0,04…25bar; Medium temperature 0…+100°C; Connection G 2"; Length 150mm
To Series: Angle seat check valve Series CH117
Female thread Length Operating pressure Seal Medium temperature Type
G 2" 150 mm 0,04...25 bar FKM 0...100 °C CH117-20
Check valve Series CH009

Check valve Series CH009

Wafer type; Body 1.4408; Disc 1.4404; Metal sealing; Medium temperature -55…+250°C

Rückschlagventil Serie CH009 Rückschlagventil Serie CH009 Rückschlagventil Serie CH009
To Series: Check valve Series CH009
Grundversion
DN Length Flange Type Sequence
50 mm 40 mm PN6/10/16/25/40, ANSI150/300 CH009-50 33420006
65 mm 46 mm PN6/10/16/25/40, ANSI150/300 CH009-65 33420007
80 mm 50 mm PN6/10/16/25/40, ANSI150/300 CH009-80 33420008
100 mm 60 mm PN10/16/25/40, ANSI150/300 CH009-100 33420009
Swing check valve Series CS-2466/CS-2424

Swing check valve Series CS-2466/CS-2424

Wafer type; Reset by its own weight; Body Zinc plated steel; Seal NBR; Medium temperature -10…+120°C

Rückschlagklappe Serie CS-2466/CS-2424
To Series: Swing check valve Series CS-2466/CS-2424
Grundversion
DN Length Flange Flap material Type Sequence
32 mm 14 mm PN10/16/25/40, ANSI300 1.4401 CS-2466B-32 33430000
40 mm 14 mm PN10/16/25/40, ANSI300 1.4401 CS-2466B-40 33430002
50 mm 14 mm PN10/16/25/40, ANSI300 1.4401 CS-2466B-50 33430004
65 mm 14 mm PN10/16/25/40, ANSI300 1.4401 CS-2466B-65 33430006
80 mm 14 mm PN10/16/25/40, ANSI300 1.4401 CS-2466B-80 33430008
100 mm 18 mm PN10/16 1.4401 CS-2466B-100 33430011
125 mm 18 mm PN10/16, ANSI150 1.4401 CS-2466B-125 33430012
150 mm 20 mm PN10/16, ANSI150 1.4401 CS-2466B-150 33430014
200 mm 22 mm PN10/16 Zinc plated steel CS-2424B-200 33430016
250 mm 26 mm PN10/16 Zinc plated steel CS-2424B-250 33430017
300 mm 32 mm PN10 Zinc plated steel CS-2424B-300 33430018
350 mm 38 mm PN10 Zinc plated steel CS-2424B-350 33430019
400 mm 44 mm PN10 Zinc plated steel CS-2424B-400 33430020
