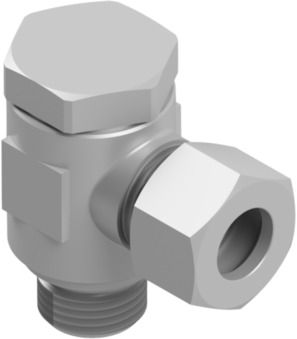

High pressure banjo Series C-WH-MKDS; Thread Metrical; Elastic seal; Type 12-L
Intrastat No.: 73079910
Country of origin: Italy
Weight: 0.194 Kg
Short Itemnumber: CWH12LM16X1.5KDS
Country of origin: Italy
Weight: 0.194 Kg
Short Itemnumber: CWH12LM16X1.5KDS
Scope of delivery
fitting body, nut, die ring, supplied seperately
high pressure banjo series C-WH-MKDS; thread metrical; elastic seal; type 12-L
Technical specifications
| Type | Light series |
|---|---|
| Male thread | M16x1,5 |
| Diameter | 12 mm |
| Type | Light series |
| Male thread | M16x1,5 |
| Diameter | 12 mm |
C-WH12LM16X1,5KDS
