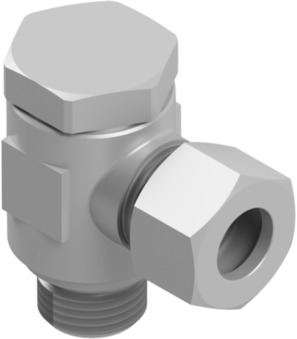

High pressure banjo Series C-WH-MKDS; Thread Metrical; Elastic seal; Type 6-L
Intrastat No.: 73079910
Country of origin: Italy
Weight: 0.062 Kg
Short Itemnumber: CWH06LM10X1KDS
Country of origin: Italy
Weight: 0.062 Kg
Short Itemnumber: CWH06LM10X1KDS
Scope of delivery
fitting body, nut, die ring, supplied seperately
high pressure banjo series C-WH-MKDS; thread metrical; elastic seal; type 6-L
Technical specifications
| Type | Light series |
|---|---|
| Male thread | M10x1 |
| Diameter | 6 mm |
| Type | Light series |
| Male thread | M10x1 |
| Diameter | 6 mm |
C-WH06LM10X1KDS
