BUW9-250-CSIQ-D42-01

Name: BUW9-250-CSIQ-D42-01
Brand: STASTO
SKU: BUW9-250-CSIQ-D42-01
Price: 999999.0 RON
Availability: InStock

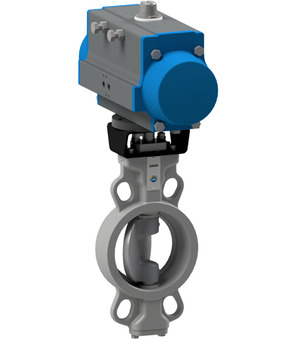

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+250°C; DN 250mm; Length 69mm; Pressure range 0…25bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAD230

Intrastat No.: 84818085
Country of origin: Italy
Weight: 98.5 Kg
Short Itemnumber: BUW9250CSIQD4201

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+250°C; DN 250mm; length 69mm; pressure range 0…25bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAD230

999.999,00 lei 999999.0 RON 999.999,00 lei

This combination does not exist.

Availability:

Add to cart

No Specifications

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_BUW9250CSIQD4201.stp

Download

BUW9-250-CSIQ-B x 1.0

Butterfly valve with bare shaft BUW9-250-CSIQ-B

Butterfly valve with bare shaft Series BUW9-CSIQ-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 250mm; Length 69mm; Nominal flange pressure PN10/16/25/ANSI150

Add to Cart

PAD230 x 1.0

Pneumatic actuator PAD230

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 230mm; Flange ISO5211 F16; Female square 46mm; Torque at 5,5bar 1934Nm

Add to Cart

APKTGB0152 x 1.0
