Butterfly valve with pneumatic actuator Series BUW9-SSIS-D4 Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Butterfly valves - pneumatically operated
  5. Butterfly valve with pneumatic actuator Series BUW9-SSIS-D4
  6. BUW9-200-SSIQ-D42

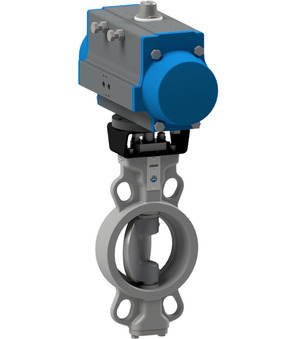

Butterfly valve with pneumatic actuator BUW9-200-SSIQ-D42

Butterfly valve with pneumatic actuator BUW9-200-SSIQ-D42

Butterfly valve with pneumatic actuator Series BUW9-SSIS-D4; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 200mm; Length 61mm; Actuator PAD200-H

Intrastat No.: 84818085
Country of origin: Italy
Weight: 64.0 Kg
Short Itemnumber: BUW9200SSIQD42
https://www.stasto.ro/web/image/product.template/150417/image_1920?unique=b9bbba7

butterfly valve with pneumatic actuator series BUW9-SSIS-D4; wafer type; double eccentric; length according to EN558−1R20; body, disc AISI 316; shaft AISI 630; seat Inconel 625; nominal flange pressure PN10/16/25/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; pressure range 0...25bar; DN 200mm; length 61mm; actuator PAD200-H

23.173,40 lei 23173.4 RON 23.173,40 lei

Not Available For Sale

  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 200 mm
Length 61 mm
pressure
Pressure range 0...25 bar
characteristics
Actuator PAD200-H

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Butterfly valve with pneumatic actuator Series BUW9-SSIS-D4_EN.pdf
Download
CAD / 3D
1
CADSTEP_BUW9200SSIQD42.stp
Download

ZIP
Datové listy
1
Datový list_uzavírací klapka s otočným pneumatickým pohonem série BUW9-SSIS-D4_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjældventil med pneumatisk drejedrev Serie BUW9-SSIS-D4_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Absperrklappe mit Druckluftdrehantrieb Serie BUW9-SSIS-D4_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Πεταλούδα απομόνωσης με πνευματικό περιστροφικό ενεργοποιητή Σειρά BUW9-SSIS-D4_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de mariposa con actuador rotativo neumático Serie BUW9-SSIS-D4_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Sulkuventtiili pneumaattisella kääntötoimilaitteella Sarja BUW9-SSIS-D4_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne papillon avec actionneur rotatif pneumatique Série BUW9-SSIS-D4_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Leptirasti zaporni ventil s pneumatskim rotacijskim pogonom Serija BUW9-SSIS-D4_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett pillangószelep sorozat BUW9-SSIS-D4_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Serranda di intercettazione con attuatore pneumatico rotativo Serie BUW9-SSIS-D4_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjeldventil med pneumatisk dreieaktuator Serie BUW9-SSIS-D4_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Vlinderklep met pneumatische draaiaandrijving Serie BUW9-SSIS-D4_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_przepustnica z napędem pneumatycznym Seria BUW9-SSIS-D4_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Supapă fluture cu actuator rotativ pneumatic serie BUW9-SSIS-D4_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Zaporna loputa s pnevmatskim rotacijskim pogonom serija BUW9-SSIS-D4_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_leptir ventil sa pneumatskim aktuatorom serije BUW9-SSIS-D4_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjällventil med pneumatiskt vriddon Serie BUW9-SSIS-D4_SV.pdf
Download
BUW9-200-SSIQ-B x 1.0
Butterfly valve with bare shaft BUW9-200-SSIQ-B
Butterfly valve with bare shaft Series BUW9-SSIS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 200mm; Length 61mm; Nominal flange pressure PN10/16/26/ANSI150
Add to Cart
Pneumatic actuator PAD200-H
PAD200-H x 1.0
Pneumatic actuator PAD200-H
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 1170Nm
Add to Cart
APKTGB0142 x 1.0
APKTGB0142
Mounting bracket For butterfly valve; DN200-F10-Square 22; Actuator F14-36
Add to Cart
