BUW9-150-SSIS-T22-A

BUW9-150-SSIS-T22-A

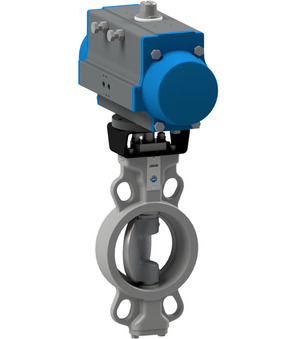

Butterfly valve with pneumatic actuator; NO; ATEX II 2 GD Ex h X; Wafer type; Length According to EN558−1R20; Body Steel 1.4408; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; DN 150mm; Length 56mm; Pressure range 0…10bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAS2005-H

Intrastat No.: 84818085
Country of origin: Italy
Weight: 71.4 Kg
Short Itemnumber: BUW9150SSIST22A
https://www.stasto.ro/web/image/product.template/163396/image_1920?unique=f96ddcc

butterfly valve with pneumatic actuator; NO; ATEX II 2 GD Ex h X; wafer type; length according to EN558−1R20; body steel AISI 316; disc AISI 316; shaft AISI 630; seat Inconel 625; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; DN 150mm; length 56mm; pressure range 0…10bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS2005-H

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
BUW9-150-SSIS-T22
BUW9-150-SSIS-T22 x 1.0
BUW9-150-SSIS-T22
Butterfly valve with pneumatic actuator; NO; Wafer type; Length According to EN558−1R20; Body Steel 1.4408; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; DN 150mm; Length 56mm; Pressure range 0…10bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAS2005-H
