BUW9-150-SSIS-S22

BUW9-150-SSIS-S22

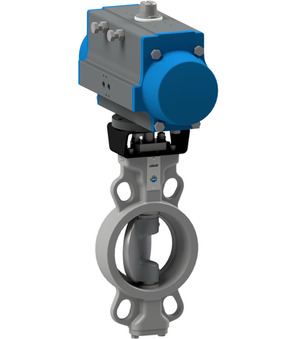

Butterfly valve with pneumatic actuator; NC; Wafer type; Length According to EN558−1R20; Body Steel 1.4408; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; DN 150mm; Length 56mm; Pressure range 0…10bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAS2005-H

Intrastat No.: 84818085
Country of origin: Italy
Weight: 71.4 Kg
Short Itemnumber: BUW9150SSISS22
https://www.stasto.ro/web/image/product.template/179033/image_1920?unique=24fee4a

butterfly valve with pneumatic actuator; NC; wafer type; length according to EN558−1R20; body steel AISI 316; disc AISI 316; shaft AISI 630; seat Inconel 625; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; DN 150mm; length 56mm; pressure range 0…10bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS2005-H

24.359,60 lei 24359.6 RON 24.359,60 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW9-150-SSIS-B x 1.0
    Butterfly valve with bare shaft BUW9-150-SSIS-B
    Butterfly valve with bare shaft Series BUW9-SSIS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150
    Add to Cart
    Pneumatic actuator PAS2005-H
    PAS2005-H x 1.0
    Pneumatic actuator PAS2005-H
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 406Nm
