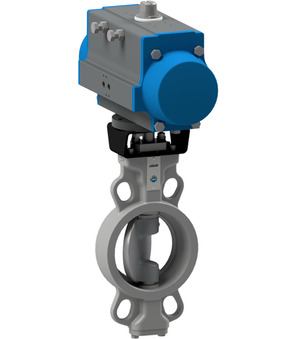

Butterfly valve with pneumatic rotary actuator BUW9-050-CSIS-S22 (copy)

Butterfly valve with pneumatic rotary actuator BUW9-050-CSIS-S22 (copy)

butterfly valve with pneumatic actuator series BUW9-CSIS-S; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; DN 50mm; length 43mm; pressure range 0…10bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS1155-H

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Short Itemnumber: BUW9050CSIST22
https://www.stasto.ro/web/image/product.template/226287/image_1920?unique=9de388b

butterfly valve with pneumatic actuator series BUW9-CSIS-S; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; DN 50mm; length 43mm; pressure range 0…10bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS1155-H

7.676,00 lei 7676.0 RON 7.676,00 lei

Not Available For Sale

excl. tax
  • DN
  • Length
  • Flange
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 50 mm
Length 43 mm
Flange PN10/16/25, ANSI150
Pressure range 0...10 bar
DN 50 mm
Length 43 mm
Flange PN10/16/25, ANSI150
BUW9-050-CSIS-B x 1.0 Pcs
Butterfly valve with bare shaft BUW9-050-CSIS-B
Butterfly valve with bare shaft Series BUW9-CSIQ-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 50mm; Length 43mm; Nominal flange pressure PN10/16/25/ANSI150
PAS1155-HBA
PAS1155-HBA x 1.0 Pcs
PAS1155-HBA
pneumatic actuator; single acting; rotation angle 90°; according to ISO 5211/NAMUR; operating pressure range max. 8bar; diameter 115mm; flange ISO5211 F07/F10; torque at 5,5bar 71,1Nm; with FKM o-rings; high temperature design 150°C; pinion turned by 90°; inverse direction of rotation
APKTGB0072 x 1.0 Pcs
APKTGB0072
Mounting bracket For butterfly valve BUW9/H; DN40-80; F07
