BUW6-250-DSV-S22-A3C01

Name: BUW6-250-DSV-S22-A3C01
Brand: STASTO
SKU: BUW6-250-DSV-S22-A3C01
Price: 999999.0 RON
Availability: InStock

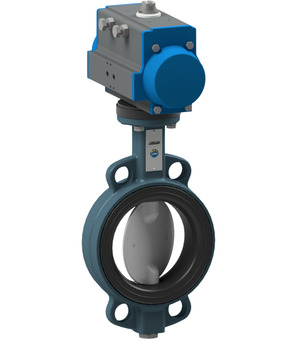

butterfly valve with pneumatic actuator; wafer type; ATEX - II 2GD Ex h X EPT 14; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...10bar; DN 250mm; length 68mm; actuator PAS2005; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; Oil and grease-free finish

Intrastat No.: 84818085
Country of origin: Italy
Weight: 79.88 Kg
Short Itemnumber: BUW6250DSVS22A3C01

999.999,00 lei 999999.0 RON 999.999,00 lei

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW6-250-DSV-B-A3C01 x 1.0

Butterfly valve with bare shaft BUW6-250-DSV-B-A3C01

butterfly valve with bare shaft; wafer type; ATEX - II 2GD Ex h X EPT 14; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...16bar; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; DN 250mm; length 68mm; Oil and grease-free finish

Add to Cart

PAS2005 x 1.0

Pneumatic actuator PAS2005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 406Nm

Add to Cart

APKTGB0013 x 1.0
