BUW6-200-DSV-D12

Name: BUW6-200-DSV-D12
Brand: STASTO
SKU: BUW6-200-DSV-D12
Price: 9709.4 RON
Availability: InStock

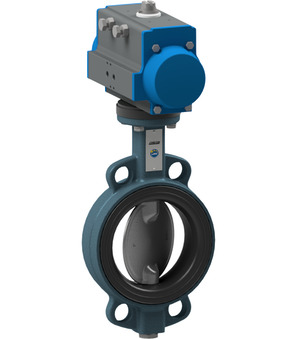

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 200mm; Length 60mm; Actuator PAD140

Intrastat No.: 84818085
Country of origin: Italy
Weight: 30.93 Kg
Short Itemnumber: BUW6200DSVD12

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...16bar; DN 200mm; length 60mm; actuator PAD140

9.709,40 lei 9709.4 RON 9.709,40 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW6-200-DSV-B x 1.0

Butterfly valve with bare shaft BUW6-200-DSV-B

Butterfly valve with bare shaft Series BUW6-DSV-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 200mm; Length 60mm

Add to Cart

PAD140 x 1.0

Pneumatic actuator PAD140

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 140mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 451Nm

Add to Cart

APKTGB0049 x 1.0
