BUW6-200-DS1P1-D22-A

Name: BUW6-200-DS1P1-D22-A
Brand: STASTO
SKU: BUW6-200-DS1P1-D22-A
Price: 9464.6 RON
Availability: InStock

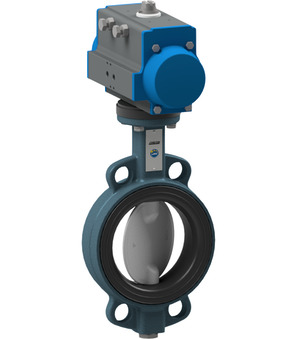

Butterfly valve with pneumatic actuator Series BUW6-DS1P1-D2-A; ATEX II 2GD Ex h X EPT 14; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408 Chenisil Coated; Shaft 1.4016; Liner Polyurethane; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+90°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Actuator PAD125

Intrastat No.: 84818085
Country of origin: Italy

Weight: 25.38 Kg
Short Itemnumber: BUW6200DS1P1D22A

butterfly valve with pneumatic actuator series BUW6-DS1P1-D2-A; ATEX II 2GD Ex h X EPT 14; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316 Chenisil coated; shaft AISI 430; liner polyurethane; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+90°C; pressure range 0...10bar; DN 200mm; length 60mm; actuator PAD125

9.464,60 lei 9464.6 RON 9.464,60 lei

excl. tax

Design
- ATEX

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...10bar
Design	ATEX

Specifications
Spare Parts

Pressure range	0...10bar
Design	ATEX

BUW6-200-DS1P1-B-A x 1.0 Pcs

BUW6-200-DS1P1-B-A

Butterfly valve with bare shaft Series BUW6-DS1P1-B-A; ATEX II 2GD Ex h X; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408 Chenisil Coated ; Shaft 1.4016; Liner Polyurethane; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+90°C; Pressure range 0...16bar; DN 200mm; Length 60mm

PAD125 x 1.0 Pcs

Pneumatic actuator PAD125

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 327Nm

APKTGB0049 x 1.0 Pcs
