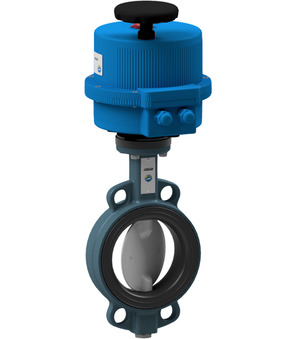

BUW6-150-DSNS-0L2

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4401; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0…16bar; DN 150mm; Length 56mm

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67

Adapter For butterfly valve DN40-DN150; F07/F07

Square adapter Series VK; 17X14; Length 17mm; Material Stahl
