BUW6-150-DSE-S22-01

BUW6-150-DSE-S22-01

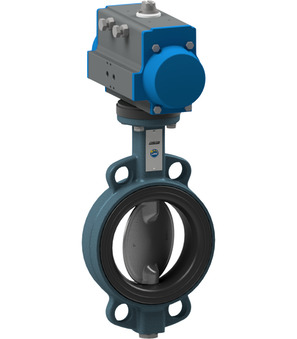

butterfly valve with pneumatic actuator series BUW6-DSE-S2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 150mm; length 56mm; actuator PAS1605; stem extension 80mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 40.18 Kg
Short Itemnumber: BUW6150DSES2201
https://www.stasto.ro/web/image/product.template/218665/image_1920?unique=24fee4a

butterfly valve with pneumatic actuator series BUW6-DSE-S2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 150mm; length 56mm; actuator PAS1605; stem extension 80mm

10.706,90 lei 10706.9 RON 10.706,90 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW6-150-DSE-B x 1.0
    Butterfly valve with bare shaft BUW6-150-DSE-B
    Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
    Add to Cart
    A4/314/99 x 1.0
    A4/314/99
    Bolt; 1.4305; Diameter 40mm; Height of the bolt 79mm; Male square 27mm; Height of the male square 28mm; Female square 14mm; Height of the female square 18mm
    Add to Cart
    ATSV1007 x 1.0
    ATSV1007
    Mounting bridge; Material Zinc plated steel; Flange 1 F10; Flange 2 F07; Height 80mm
    Add to Cart
    Pneumatic actuator PAS1605
    PAS1605 x 1.0
    Pneumatic actuator PAS1605
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm
    Add to Cart
    APKTGB0051 x 1.0
    APKTGB0051
    Mounting bracket For butterfly valve; DN125...150-F07 -Square 14; Actuator F10-27
    Add to Cart
