BUW6-100-SSNS-S22-A

Name: BUW6-100-SSNS-S22-A
Brand: STASTO
SKU: BUW6-100-SSNS-S22-A
Price: 999999.0 RON
Availability: InStock

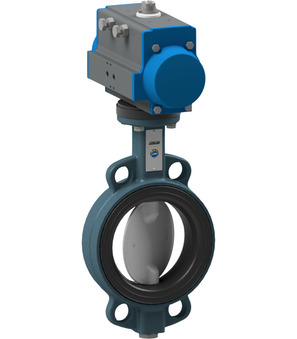

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body, Disc And Shaft 1.4408; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator PAS1155; ATEX II 2G/D c TX

Intrastat No.: 84818085
Country of origin: Italy
Weight: 20.48 Kg
Short Itemnumber: BUW6100SSNSS22A

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body, disc and shaft AISI 316; liner NBR; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...10bar; DN 100mm; length 52mm; actuator PAS1155; ATEX II 2G/D c TX
