BUW6-100-DSE-S22-A

Name: BUW6-100-DSE-S22-A
Brand: STASTO
SKU: BUW6-100-DSE-S22-A
Price: 4267.2 RON
Availability: InStock

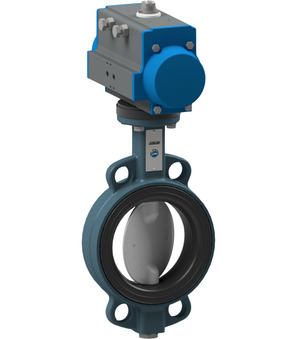

butterfly valve with pneumatic actuator; ATEX II 2 G/D Ex h; wafer type; length according to EN558−1 R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 100mm; length 52mm; actuator PAS1155

Intrastat No.: 84818085
Country of origin: Italy
Weight: 16.98 Kg
Short Itemnumber: BUW6100DSES22A

4.267,20 lei 4267.2 RON 4.267,20 lei

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW6-100-DSE-B-A x 1.0

Butterfly valve with bare shaft BUW6-100-DSE-B-A

butterfly valve with bare shaft ATEX II 2 G/D Ex h; wafer type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 100mm; length 52mm; pressure range 0…16bar; flange PN10/16/ANSI150

Add to Cart

PAS1155 x 1.0

Pneumatic actuator PAS1155

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm

Add to Cart

MFFALFUAL09733 x 1.0
