BUW6-100-DSD-D22

Name: BUW6-100-DSD-D22
Brand: STASTO
SKU: BUW6-100-DSD-D22
Price: 3515.4 RON
Availability: InStock

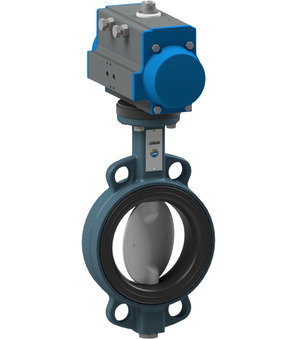

Butterfly valve with pneumatic actuator; DVGW-gas-approved; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+60°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator PAD085

Intrastat No.: 84818085
Country of origin: Italy
Weight: 9.45 Kg
Short Itemnumber: BUW6100DSDD22

butterfly valve with pneumatic actuator; DVGW-gas-approved; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+60°C; pressure range 0...10bar; DN 100mm; length 52mm; actuator PAD085

3.515,40 lei 3515.4 RON 3.515,40 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW6-100-DSD-B x 1.0

Butterfly valve with bare shaft BUW6-100-DSD-B

Butterfly valve with bare shaft Series BUW6-DSD-B, BUW4-DSD-B; Wafer type; DVGW-gas-approved;Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 100mm; Length 52mm; Pressure range 0...16bar

Add to Cart

PAD085 x 1.0

Pneumatic actuator PAD085

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm

Add to Cart

MFFALFUAL09733 x 1.0
