BUW6-080-DUE-D12

BUW6-080-DUE-D12

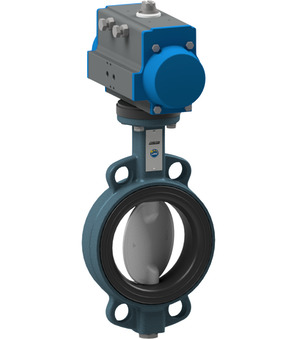

Butterfly valve with pneumatic actuator Series BUW6-DE-D1; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 80mm; Length 46mm; Disc Stahl verzinkt; Actuator PAD085

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.05 Kg
Short Itemnumber: BUW6080DUED12
https://www.stasto.ro/web/image/product.template/217683/image_1920?unique=3107bc9

butterfly valve with pneumatic actuator series BUW6-DE-D1; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...16bar; DN 80mm; length 46mm; disc Stahl verzinkt; actuator PAD085

2.475,00 lei 2475.0 RON 2.475,00 lei

Not Available For Sale

  • DN
  • Length
  • Pressure range
  • Disc
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 80 mm
Length 46 mm
pressure
Pressure range 0...10 bar
materials
Disc Zinc plated steel
characteristics
Actuator PAD075
BUW6-080-DUE-B x 1.0
Butterfly valve with bare shaft BUW6-080-DUE-B
Butterfly valve with bare shaft Series BUW6-DE-B, BUW1-DE-B, BUWC-DE-B, BUWZ-DE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 80mm; Length 46mm; Disc Stahl verzinkt; Pressure range 0…16bar; Flange PN10/16/ANSI150
Add to Cart
Pneumatic actuator PAD085
PAD085 x 1.0
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
Add to Cart
