BUW6-065-DSES-S22

Name: BUW6-065-DSES-S22
Brand: STASTO
SKU: BUW6-065-DSES-S22
Price: 2746.9 RON
Availability: InStock

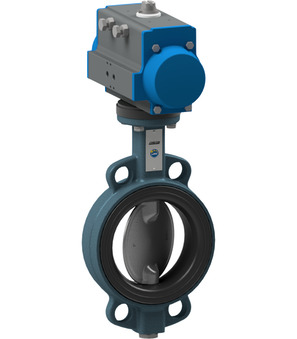

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4401; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 65mm; Length 46mm; Actuator PAS0855

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.65 Kg
Short Itemnumber: BUW6065DSESS22

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 316; liner EPDM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 65mm; length 46mm; actuator PAS0855

2.746,90 lei 2746.9 RON 2.746,90 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW6-065-DSES-B x 1.0

BUW6-065-DSES-B

Butterfly valve with free shaft end DN65, wafer, PN10/16/A150, 0-16bar body GGG40, disc and shaft 1.4408, sleeve EPDM

Add to Cart

PAS0855 x 1.0

Pneumatic actuator PAS0855

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm

Add to Cart

MFFALFUAL09733 x 1.0
