BUW6-065-DSE-CK2

BUW6-065-DSE-CK2

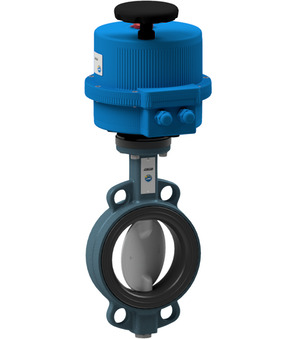

Butterfly valve with electrical actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 65mm; Length 46mm; Operating time 9s; Voltage 24VAC/DC; With integrated positioner; Control signal 4-20mA

Intrastat No.: 84818085
Country of origin: Italy
Weight: 7.09 Kg
Short Itemnumber: BUW6065DSECK2
https://www.stasto.ro/web/image/product.template/126976/image_1920?unique=24fee4a

butterfly valve with electrical actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...10bar; DN 65mm; length 46mm; operating time 9s; voltage 24VAC/DC; with integrated positioner; control signal 4-20mA

5.222,40 lei 5222.4 RON 5.222,40 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW6-065-DSE-B x 1.0
    Butterfly valve with bare shaft BUW6-065-DSE-B
    Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 65mm; Length 46mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
    Add to Cart
    Electrical actuator VB060-L-P0S
    VB060-L-P0S x 1.0
    Electrical actuator VB060-L-P0S
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 24VAC/DC; Protection class IP67
