BUW6-050-DSN-D21-01

Name: BUW6-050-DSN-D21-01
Brand: STASTO
SKU: BUW6-050-DSN-D21-01
Price: 999999.0 RON
Availability: InStock

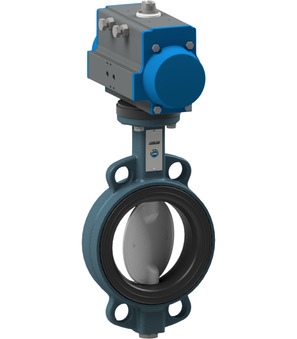

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...16bar; DN 50mm; length 43mm; actuator MT15-0DAC13;

Intrastat No.: 84818085
Country of origin: Italy

Short Itemnumber: BUW6050DSND2101

999.999,00 lei 999999.0 RON 999.999,00 lei

excl. tax

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...16bar

Specifications
Spare Parts

Pressure range

0...16bar

BUW6-050-DSN-B x 1.0 Pcs

Butterfly valve with bare shaft BUW6-050-DSN-B

Butterfly valve with bare shaft Series BUW1-DSN-B, BUW6-DSN-B, BUW-2-DSN, BUWV-DSN-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 50mm; Length 43mm; Pressure range 0...16bar; Nominal flange pressure PN10/16/ANSI150
