Butterfly valve with pneumatic actuator BUW6-050-DSE-D22-ABS54-C001-03-C002-31-6-EB0X01-WSTHVB
BUW6-050-DSE-D22

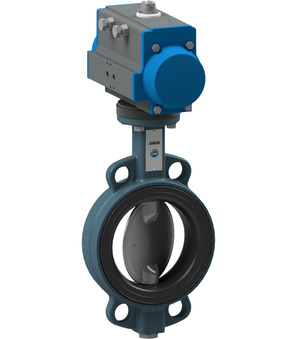

Butterfly valve with pneumatic actuator Series BUW6-DSE-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Actuator PAD063
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
EB0X01-WSTHVB
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic; Mounting bridge Stainless steel
Country of origin: Italy
Weight: 5.44 Kg
Short Itemnumber: BUW6050DSED22ABS54C00103C002316EB0X01WSTHVB
NWT40-100
profile magnetic cylinder series NWT; according to ISO 15552, VDMA; double acting; pressure range 0,5...10bar; adjustable cushions; diameter 40mm; stroke 100mm; piston rod thread M12x1,25; connection 1/4"; push force at 6 bar 754N
| dimension | |
|---|---|
| Valve interface Namur | 1/4" |
| DN | 50 mm |
| Length | 43 mm |
| Designs | |
| Connector size | 22 |
| design | |
| Design | Standard |
| Electrical key figures | |
| Voltage | 24VDC / 48V/50-60Hz |
| pressure | |
| Pressure range | 0...10 bar |
| characteristics | |
| Coil | C001 |
| Actuator | PAD063 |
| Actuator 2 | PAS |
