BUW6-040-DSE-S22-A

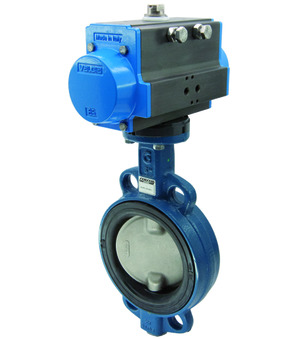

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 40mm; Length 33mm; Actuator PAS0855; ATEX

Intrastat No.: 84818085
Country of origin: Italy
Weight: 7.15 Kg
Short Itemnumber:BUW6040DSES22A
https://www.stasto.ro/web/image/product.template/143031/image_1920?unique=24fee4a

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 40mm; length 33mm; actuator PAS0855; ATEX

2.750,90 lei 2750.9 RON 2.750,90 lei

Not Available For Sale

  • Design

This combination does not exist.

Availability:
Contact Us
Design ATEX
Butterfly valve with pneumatic actuator BUW6-040-DSE-S22
BUW6-040-DSE-S22 x 1.0
Butterfly valve with pneumatic actuator BUW6-040-DSE-S22
Butterfly valve with pneumatic actuator Series BUW6-DSE-S2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 40mm; Length 33mm; Actuator PAS0855
