BUW6-040-DSD-D22-A

Name: BUW6-040-DSD-D22-A
Brand: STASTO
SKU: BUW6-040-DSD-D22-A
Price: 2169.5 RON
Availability: InStock

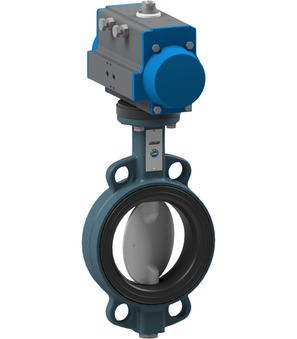

Butterfly valve with pneumatic actuator; Wafer type; DVGW-gas-approved; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10…+60°C; Pressure range 0...10bar; DN 40mm; Length 33mm; Actuator PAD063; ATEX

Intrastat No.: 84818085
Country of origin: Italy
Weight: 3.7 Kg
Short Itemnumber: BUW6040DSDD22A

butterfly valve with pneumatic actuator; wafer type; DVGW-gas-approved; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10…+60°C; pressure range 0...10bar; DN 40mm; length 33mm; actuator PAD063; ATEX

2.169,50 lei 2169.5 RON 2.169,50 lei

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW6-040-DSD-B x 1.0

Butterfly valve with bare shaft BUW6-040-DSD-B

Butterfly valve with bare shaft Series BUW6-DSD-B, BUW4-DSD-B; Wafer type; DVGW-gas-approved;Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 40mm; Length 33mm; Pressure range 0...16bar

Add to Cart

PAD063 x 1.0

Pneumatic actuator PAD063

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm

Add to Cart

MFFALFUAL09733 x 1.0
