BUW4-200-DSW-DD2-3C

Name: BUW4-200-DSW-DD2-3C
Brand: STASTO
SKU: BUW4-200-DSW-DD2-3C
Price: 5214.8 RON
Availability: InStock

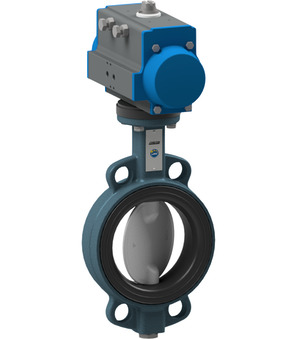

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558-1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM White; Medium temperature -10...+130°C; Pressure range Solids 0...6bar; Nominal flange pressure PN10/16/ANSI150; DN 200mm; Length 60mm; Double acting actuator; Control pressure 6...8bar; Actuator PAD085; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 18.99 Kg
Short Itemnumber: BUW4200DSWDD23C

butterfly valve with pneumatic actuator; wafer type; length according to EN558-1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM white; medium temperature -10...+130°C; pressure range solids 0...6bar; nominal flange pressure PN10/16/ANSI150; DN 200mm; length 60mm; double acting actuator; control pressure 6...8bar; actuator PAD085; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

5.214,80 lei 5214.8 RON 5.214,80 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW4-200-DSW-B-3C x 1.0

Butterfly valve with bare shaft BUW4-200-DSW-B-3C

Butterfly valve with bare shaft Series BUW4-DSW-B-3C; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM White; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…10bar; Flange PN10/16/ANSI150; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Add to Cart

PAD085 x 1.0

Pneumatic actuator PAD085

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm

Add to Cart

APKTGB0056 x 1.0
