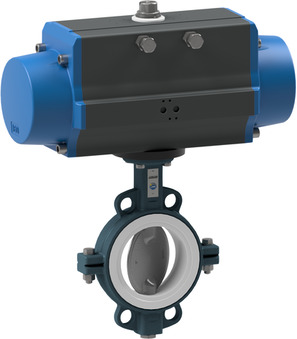

BUW4-200-DSTS-T22-A01

Name: BUW4-200-DSTS-T22-A01
Brand: STASTO
SKU: BUW4-200-DSTS-T22-A01
Price: 22248.8 RON
Availability: InStock

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc and shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Actuator PAS2005; ATEX; Spring actuated at single acting actuator NO; Actuator mounted 90° twisted

Intrastat No.: 84818085
Country of origin: Italy
Weight: 73.1 Kg
Short Itemnumber: BUW4200DSTST22A01

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 200mm; length 60mm; actuator PAS2005; ATEX; spring actuated at single acting actuator NO; actuator mounted 90° twisted

22.248,80 lei 22248.8 RON 22.248,80 lei

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW4-200-DSTS-B x 1.0

BUW4-200-DSTS-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 200mm; Length 60mm

Add to Cart

PAS2005 x 1.0

Pneumatic actuator PAS2005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 406Nm

Add to Cart

APKT001000 x 1.0
