BUW4-150-DSTS-S23

Name: BUW4-150-DSTS-S23
Brand: STASTO
SKU: BUW4-150-DSTS-S23
Price: 13613.9 RON
Availability: InStock

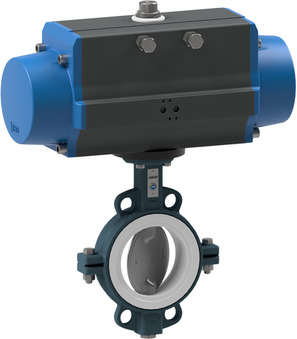

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Actuator PAS1605

Intrastat No.: 84818085
Country of origin: Italy
Weight: 40.67 Kg
Short Itemnumber: BUW4150DSTSS23

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 150mm; length 56mm; actuator PAS1605

13.613,90 lei 13613.9 RON 13.613,90 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW4-150-DSTS-B x 1.0

BUW4-150-DSTS-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 150mm; Length 56mm

Add to Cart

PAS1605 x 1.0

Pneumatic actuator PAS1605

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm

Add to Cart

APKTGB0051 x 1.0
