BUW4-100-DSTS-T22-A

Name: BUW4-100-DSTS-T22-A
Brand: STASTO
SKU: BUW4-100-DSTS-T22-A
Price: 9641.5 RON
Availability: InStock

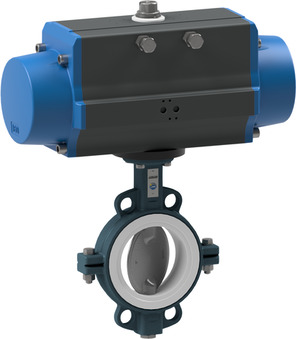

Butterfly valve with pneumatic actuator; Wafer type; Normally open NO; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator PAS1405

Intrastat No.: 84818085
Country of origin: Italy
Weight: 29.28 Kg
Short Itemnumber: BUW4100DSTST22A

butterfly valve with pneumatic actuator; wafer type; normally open NO; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 100mm; length 52mm; actuator PAS1405

9.641,50 lei 9641.5 RON 9.641,50 lei

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW4-100-DSTS-T22 x 1.0

BUW4-100-DSTS-T22

Butterfly valve with pneumatic actuator; NO; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator PAS1405
