BUW4-100-DSTS-DR2

Name: BUW4-100-DSTS-DR2
Brand: STASTO
SKU: BUW4-100-DSTS-DR2
Price: 7251.2 RON
Availability: InStock

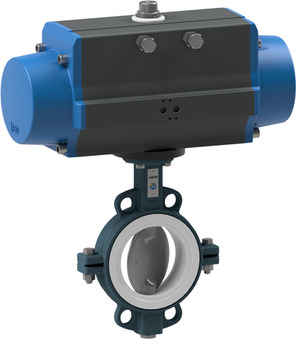

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 4…8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator PAD115

Intrastat No.: 84818085
Country of origin: Italy
Weight: 15.87 Kg
Short Itemnumber: BUW4100DSTSDR2

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 4…8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 100mm; length 52mm; actuator PAD115

7.251,20 lei 7251.2 RON 7.251,20 lei

This combination does not exist.

Availability:

Add to cart

No Specifications

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_BUW4100DSTSDR2.stp

Download

BUW4-100-DSTS-B x 1.0

BUW4-100-DSTS-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 100mm; Length 52mm

Add to Cart

PAD115 x 1.0

Pneumatic actuator PAD115

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 249Nm

Add to Cart

MFFALFUAL09733 x 1.0
