BUW4-100-DSTS-D32

Name: BUW4-100-DSTS-D32
Brand: STASTO
SKU: BUW4-100-DSTS-D32
Price: 6111.3 RON
Availability: InStock

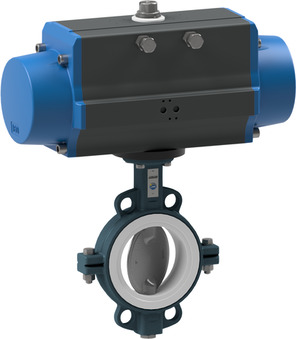

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...6bar; DN 100mm; Length 52mm; Actuator PAD085

Intrastat No.: 84818085
Country of origin: Italy
Weight: 10.85 Kg
Short Itemnumber: BUW4100DSTSD32

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...6bar; DN 100mm; length 52mm; actuator PAD085

6.111,30 lei 6111.3 RON 6.111,30 lei

excl. tax

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...6bar

Specifications
Spare Parts

Pressure range

0...6bar

BUW4-100-DSTS-B x 1.0 Pcs

BUW4-100-DSTS-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 100mm; Length 52mm
