BUW2-250-DSN-S32

Name: BUW2-250-DSN-S32
Brand: STASTO
SKU: BUW2-250-DSN-S32
Price: 11774.4 RON
Availability: InStock

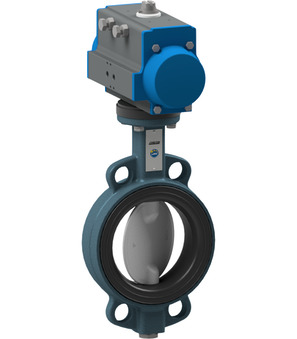

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 250mm; Length 68mm; Actuator PAS1605

Intrastat No.: 84818085
Country of origin: Italy
Weight: 52.1 Kg
Short Itemnumber: BUW2250DSNS32

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; for abrasive medias (e.g. sand, cement, etc.); body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...6bar; DN 250mm; length 68mm; actuator PAS1605

11.774,40 lei 11774.4 RON 11.774,40 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW2-250-DSN-B x 1.0

Butterfly valve with bare shaft BUW2-250-DSN-B

Butterfly valve with bare shaft Series BUW1-DSN-B, BUW6-DSN-B, BUW-2-DSN, BUWV-DSN-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 250mm; Length 68mm; Pressure range 0…10bar; Flange PN10/16/ANSI150

Add to Cart

PAS1605 x 1.0

Pneumatic actuator PAS1605

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm

Add to Cart

APKTGB0052 x 1.0
