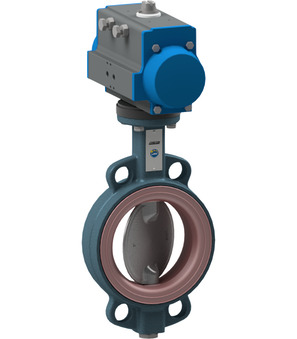

BUW2-250-DSC-D32-ABS54-C001-22-C002-31-LV-1

BUW2-250-DSC-D32-ABS54-C001-22-C002-31-LV-1

BUW2-250-DSC-D32
Butterfly valve with pneumatic actuator Series BUW2-DSC-D3; Wafer type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 250mm; Length 68mm; Actuator PAD115
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-LV-1
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC

Absperrklappe mit Druckluftdrehantrieb Serie BUW2-DSC-D3
Absperrklappe mit Druckluftdrehantrieb Serie BUW2-DSC-D3
Absperrklappe mit Druckluftdrehantrieb Serie BUW2-DSC-D3
Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 31.85 Kg
Short Itemnumber: BUW2250DSCD32ABS54C00122C00231LV1
https://www.stasto.ro/web/image/product.template/204020/image_1920?unique=8d7c563

BUW2-250-DSC-D32
butterfly valve with pneumatic actuator series BUW2-DSC-D3; wafer type; length according to EN558−1R20; for abrasive medias (e.g. sand, cement, etc.); body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner carboxylated NBR; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...6bar; DN 250mm; length 68mm; actuator PAD115
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-22
coil type C001; connector size 22mm; voltage 230V/50-60Hz
C002-31-LV-1
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 230VAC/DC

8.657,80 lei 8657.8 RON 8.657,80 lei

Not Available For Sale

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...6 bar
DN 250 mm
Length 68 mm
Voltage 230V/50-60Hz
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...6 bar
DN 250 mm
Length 68 mm
Voltage 230V/50-60Hz
Design With integrated LED-yellow and VDR
Brand STASTO

BUW2-250-DSC-D32-ABS54-C001-22-C002-31-LV-1

Documents

11 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

3

CAD / 3D

3
Danish / Dansk
ZIP

Data Sheets

3

CAD / 3D

3
German / Deutsch
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

3

CAD / 3D

3
Greek / Ελληνικά
ZIP

Data Sheets

3

CAD / 3D

3
English
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

3

CAD / 3D

3
Spanish / Español
ZIP

Data Sheets

3

CAD / 3D

3
Finnish / Suomi
ZIP

Data Sheets

3

CAD / 3D

3
French / Français
ZIP

Data Sheets

3

CAD / 3D

3
Croatian / hrvatski jezik
ZIP

Data Sheets

3

CAD / 3D

3
Hungarian / Magyar
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

3

CAD / 3D

3
Italian / Italiano
ZIP

Data Sheets

3

CAD / 3D

3
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

3

CAD / 3D

3
Dutch / Nederlands
ZIP

Data Sheets

3

CAD / 3D

3
Polish / Język polski
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

3

CAD / 3D

3
Romanian / română
ZIP

Data Sheets

3

CAD / 3D

3
Slovenian / slovenščina
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

3

CAD / 3D

3
Serbian (Latin) / srpski
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

3

CAD / 3D

3
Swedish / Svenska
ZIP

Data Sheets

3

CAD / 3D

3
Butterfly valve with pneumatic actuator BUW2-250-DSC-D32
BUW2-250-DSC-D32 x 1.0 Pcs
Butterfly valve with pneumatic actuator BUW2-250-DSC-D32
Butterfly valve with pneumatic actuator Series BUW2-DSC-D3; Wafer type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 250mm; Length 68mm; Actuator PAD115
Mounted pilot valve ABS54
ABS54 x 1.0 Pcs
Mounted pilot valve ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-22
C001-22 x 1.0 Pcs
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-LV-1
C002-31-LV-1 x 1.0 Pcs
C002-31-LV-1
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
