BUW2-200-DSNS-S32

Name: BUW2-200-DSNS-S32
Brand: STASTO
SKU: BUW2-200-DSNS-S32
Price: 8054.4 RON
Availability: InStock

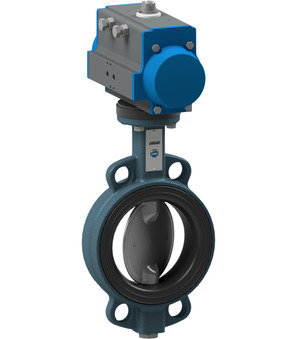

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4401; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 200mm; Length 60mm; Actuator PAS1405

Intrastat No.: 84818085
Country of origin: Italy

Weight: 36.84 Kg
Short Itemnumber: BUW2200DSNSS32

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 316; liner NBR; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...6bar; DN 200mm; length 60mm; actuator PAS1405

8.054,40 lei 8054.4 RON 8.054,40 lei

excl. tax

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...6bar

Specifications
Spare Parts

Pressure range

0...6bar

BUW2-200-DSNS-B x 1.0 Pcs

BUW2-200-DSNS-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4401; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 200mm; Length 60mm

PAS1405 x 1.0 Pcs

Pneumatic actuator PAS1405

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 140mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 114Nm

APKTGB0050 x 1.0 Pcs
