BUW2-080-DSD-SU2-A

Name: BUW2-080-DSD-SU2-A
Brand: STASTO
SKU: BUW2-080-DSD-SU2-A
Price: 2917.7 RON
Availability: InStock

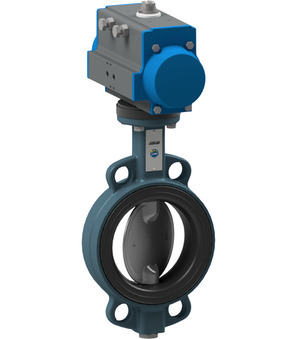

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR DVGW-gas-approved; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 4...8bar; Medium temperature -10...+60°C; Pressure range 0...6bar; DN 80mm; Length 46mm; Actuator PAS0753; ATEX zone 1 and 21

Intrastat No.: 84818085
Country of origin: Italy
Weight: 7.54 Kg
Short Itemnumber: BUW2080DSDSU2A

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR DVGW-gas-approved; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 4...8bar; medium temperature -10...+60°C; pressure range 0...6bar; DN 80mm; length 46mm; actuator PAS0753; ATEX zone 1 and 21

2.917,70 lei 2917.7 RON 2.917,70 lei

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW2-080-DSD-B-A x 1.0

BUW2-080-DSD-B-A

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR DVGW-gas-approved; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; Pressure range 0...6bar; DN 80mm; Length 46mm; ATEX zone 1 and 21

Add to Cart

PAS0753 x 1.0

Pneumatic actuator PAS0753

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 15,1Nm

Add to Cart

MFFALFUAL09733 x 1.0
