BUW2-080-ANE-0K2

BUW2-080-ANE-0K2

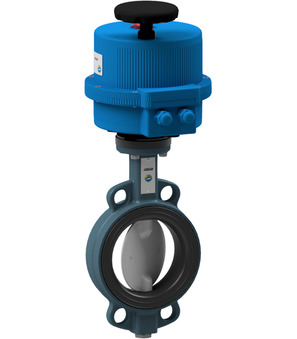

Butterfly valve with electrical actuator; Wafer type; Length According to EN558−1R20; Body Aluminum; Disc Aluminium-bronze; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 80mm; Length 46mm Operating time 9s; Voltage 24VAC/DC

Intrastat No.: 84818085
Country of origin: Italy
Weight: 5.24 Kg
Short Itemnumber: BUW2080ANE0K2
https://www.stasto.ro/web/image/product.template/160076/image_1920?unique=f96ddcc

butterfly valve with electrical actuator; wafer type; length according to EN558−1R20; body aluminum; disc aluminium-bronze; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...10bar; DN 80mm; length 46mm operating time 9s; voltage 24VAC/DC

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW2-080-ANE-B x 1.0
    BUW2-080-ANE-B
    Butterfly valve with bare shaft; Wafer type; Length According to EN558−1R20; Body Aluminum; Disc Aluminium-bronze; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 80mm; Length 46mm; Pressure range 0…6bar; Flange PN10/16/ANSI150
    Add to Cart
    Electrical actuator VB060-L
    VB060-L x 1.0
    Electrical actuator VB060-L
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 24VAC/DC; Protection class IP67
