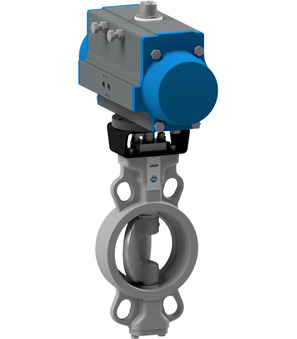

Butterfly valve with pneumatic actuator BUW0-300-SSIQ-SF2

Butterfly valve with pneumatic actuator BUW0-300-SSIQ-SF2

Butterfly valve with pneumatic actuator; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+600°C; DN 300mm; Length 78mm; Pressure range 0...0,5bar; Nominal flange pressure PN10/16/ANSI150; Actuator PAS2707-H

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW0300SSIQSF2
https://www.stasto.ro/web/image/product.template/213341/image_1920?unique=f96ddcc

butterfly valve with pneumatic actuator; wafer type; double eccentric; length according to EN558−1R20; body, disc AISI 316; shaft AISI 630; seat Inconel 625; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+600°C; DN 300mm; length 78mm; pressure range 0...0,5bar; nominal flange pressure PN10/16/ANSI150; actuator PAS2707-H

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 300 mm
Length 78 mm
Flange PN10/16, ANSI150
pressure
Pressure range 0...25 bar
characteristics
Actuator PAD270-H
BUW0-300-SSIQ-B-01 x 1.0
Butterfly valve with bare shaft BUW0-300-SSIQ-B-01
Butterfly valve with bare shaft; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+600°C; Pressure range 0...25bar; DN 300mm; Length 78mm; Flange PN10/16/ANSI150; High temperature design; Coating RAL 9006
Add to Cart
Pneumatic actuator PAS2707-H
PAS2707-H x 1.0
Pneumatic actuator PAS2707-H
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 270mm; Flange ISO5211 F16; Female square 46mm; Torque at 5,5bar 1076Nm
Add to Cart
APKTGB0151 x 1.0
APKTGB0151
Mounting bracket For butterfly valve; DN300-F12-Square 27; Actuator F16-46
