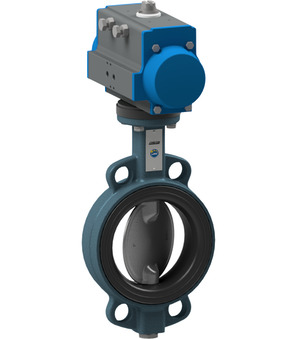

Butterfly valve with pneumatic actuator BUS3-040-DSE-S21

Name: Butterfly valve with pneumatic actuator BUS3-040-DSE-S21
Brand: STASTO
SKU: BUS3-040-DSE-S21
Price: 999999.0 RON
Availability: InStock

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN6/PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 32/40mm; Length 32mm; Actuator PAS0855

Intrastat No.: 84818085
Country of origin: France
Weight: 7.52 Kg
Short Itemnumber: BUS3040DSES21

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN6/PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 32/40mm; length 32mm; actuator PAS0855

999.999,00 lei 999999.0 RON 999.999,00 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

149G012313 x 1.0

149G012313

Butterfly valve, lever, wafer DN32/DN40 body GGG40 epoxy-coated, disc 1.4408, sleeve EPDM detented hand lever made of spheroidal cast iron

Add to Cart

PAS0855 x 1.0

Pneumatic actuator PAS0855

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm

Add to Cart
