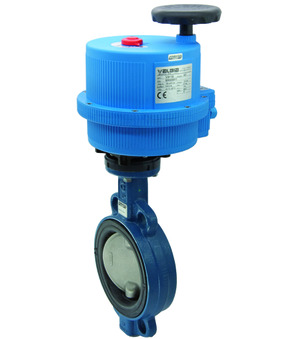

Butterfly valve with electrical actuator BULZ-200-SSES-0G2

Butterfly valve with electrical actuator BULZ-200-SSES-0G2

Butterfly valve with electrical actuator Series BULZ-SSES-0G2; Wafer type; Length According to EN558−1R20; Body, Disc And Shaft 1.4408; Liner EPDM; Medium temperature -10...+130°C; Nominal flange pressure PN16;Pressure range 0...10bar; DN 200mm; Length 60mm; Actuator VB190-H; Operating time 27s; Voltage 100-240VAC

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BULZ200SSES0G2
https://www.stasto.ro/web/image/product.template/213470/image_1920?unique=b9bbba7

butterfly valve with electrical actuator series BULZ-SSES-0G2; wafer type; length according to EN558−1R20; body, disc and shaft AISI 316; liner EPDM; medium temperature -10...+130°C; nominal flange pressure PN16;pressure range 0...10bar; DN 200mm; length 60mm; actuator VB190-H; operating time 27s; voltage 100-240VAC

14.085,70 lei 14085.7 RON 14.085,70 lei

Not Available For Sale

  • DN
  • Length
  • Voltage
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 200 mm
Length 60 mm
Electrical key figures
Voltage 100-240VAC
characteristics
Actuator VB110H
Operating time 27 s
BULZ-200-SSES-B x 1.0
Butterfly valve with bare shaft BULZ-200-SSES-B
Butterfly valve with bare shaft Series BULZ-SSES-B; Lug type; Length According to EN558−1 R20; Body, Disc And Shaft 1.4408; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…10bar; Nominal flange pressure PN16
Add to Cart
Electrical actuator VB190-H
VB190-H x 1.0
Electrical actuator VB190-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
