BULG-080-DSN-D22

Name: BULG-080-DSN-D22
Brand: STASTO
SKU: BULG-080-DSN-D22
Price: 2583.7 RON
Availability: InStock

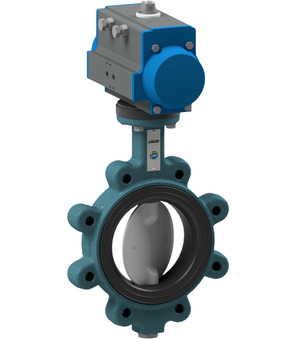

Butterfly valve with pneumatic actuator; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...10bar; DN 80mm; Length 46mm; Flange PN10/16; Actuator PAD075

Intrastat No.: 84818085
Country of origin: Italy
Weight: 9.03 Kg
Short Itemnumber: BULG080DSND22

butterfly valve with pneumatic actuator; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...10bar; DN 80mm; length 46mm; flange PN10/16; actuator PAD075

2.583,70 lei 2583.7 RON 2.583,70 lei

excl. tax

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...10bar

Specifications
Spare Parts

Pressure range

0...10bar

BULG-080-DSN-B x 1.0 Pcs

Butterfly valve with bare shaft BULG-080-DSN-B

Butterfly valve with bare shaft Series BULA-B, BULG-B, BULC-B, BULY-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 80mm; Length 46mm; Pressure range 0…16bar; Flange PN10/16
