BULG-080-DSE-S13-G

Name: BULG-080-DSE-S13-G
Brand: STASTO
SKU: BULG-080-DSE-S13-G
Price: 999999.0 RON
Availability: InStock

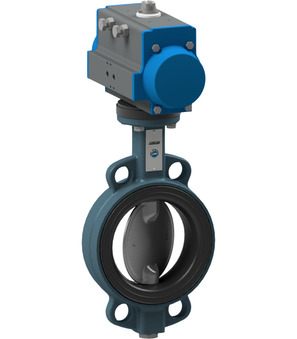

Butterfly valve with pneumatic actuator; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16; Single acting actuator; Control pressure 5,5…8bar; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 80mm; Length 46mm; Actuator PAS1255; Free of oil and grease for oxygen

Intrastat No.: 84818085
Country of origin: Italy
Weight: 20.36 Kg
Short Itemnumber: BULG080DSES13G

butterfly valve with pneumatic actuator; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16; single acting actuator; control pressure 5,5…8bar; medium temperature -10...+130°C; pressure range 0...16bar; DN 80mm; length 46mm; actuator PAS1255; free of oil and grease for oxygen

999.999,00 lei 999999.0 RON 999.999,00 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BULG-080-DSE-B-G x 1.0

BULG-080-DSE-B-G

Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 80mm; Length 46mm; Pressure range 0-16bar; Nominal flange pressure 10/16bar; Free of oil and grease for oxygen

Add to Cart

PAS1255 x 1.0

Pneumatic actuator PAS1255

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm

Add to Cart

MFFALFUAL09733 x 1.0
