BULG-065-DSV-S12

Name: BULG-065-DSV-S12
Brand: STASTO
SKU: BULG-065-DSV-S12
Price: 3894.9 RON
Availability: InStock

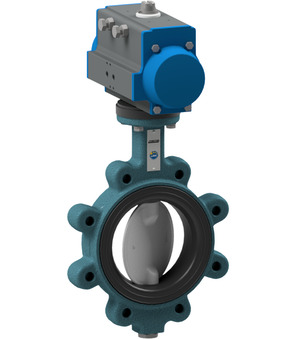

Butterfly valve with pneumatic actuator; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 65mm; Length 46mm; Flange PN10/16; Actuator PAS1005

Intrastat No.: 84818085
Country of origin: Italy
Weight: 13.1 Kg
Short Itemnumber: BULG065DSVS12

butterfly valve with pneumatic actuator; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...16bar; DN 65mm; length 46mm; flange PN10/16; actuator PAS1005

3.894,90 lei 3894.9 RON 3.894,90 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BULG-065-DSV-B x 1.0

Butterfly valve with bare shaft BULG-065-DSV-B

Butterfly valve with bare shaft Series BUL-DSV-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 65mm; Length 46mm; Pressure range 0...16bar; Nominal flange pressure 10/16

Add to Cart

PAS1005 x 1.0

Pneumatic actuator PAS1005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm

Add to Cart

MFFALFUAL09733 x 1.0
