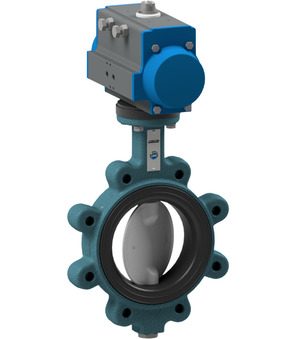

butterfly valve with pneumatic actuator BULC-400-DSE-S22

butterfly valve with pneumatic actuator BULC-400-DSE-S22

butterfly valve with pneumatic actuator series BULG-S, BULC-S; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 400mm; length 102mm; flange PN10; actuator PAS2707

Weight: 201.3 Kg
Short Itemnumber:BULC400DSES22

butterfly valve with pneumatic actuator series BULG-S, BULC-S; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 400mm; length 102mm; flange PN10; actuator PAS2707

This product is no longer available.

dimension
DN	400 mm
Length	102 mm
Flange	PN10
pressure
Pressure range	0...10 bar
characteristics
Actuator	PAS2707
