BULA-250-DSE-S13-G

Name: BULA-250-DSE-S13-G
Brand: STASTO
SKU: BULA-250-DSE-S13-G
Price: 999999.0 RON
Availability: InStock

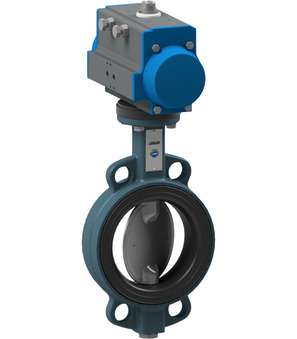

Butterfly valve with pneumatic actuator; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN16; Single acting actuator; Control pressure 5,5…8bar; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 250mm; Length 68mm; Actuator PAS2305; Free of oil and grease for oxygen

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BULA250DSES13G

butterfly valve with pneumatic actuator; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN16; single acting actuator; control pressure 5,5…8bar; medium temperature -10...+130°C; pressure range 0...16bar; DN 250mm; length 68mm; actuator PAS2305; free of oil and grease for oxygen

999.999,00 lei 999999.0 RON 999.999,00 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BULA-250-DSE-B-G x 1.0

BULA-250-DSE-B-G

Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 250mm; Length 68mm; Pressure range 0-16bar; Nominal flange pressure PN16; Free of oil and grease for oxygen

Add to Cart

PAS2305 x 1.0

Pneumatic actuator PAS2305

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 230mm; Flange ISO5211 F16; Female square 46mm; Torque at 5,5bar 661Nm

Add to Cart

APKTGB0014 x 1.0
