BAMA-025-SSTV-D0-ABS51-C001-22-C002-31-6
BAMA-025-SSTV-D0

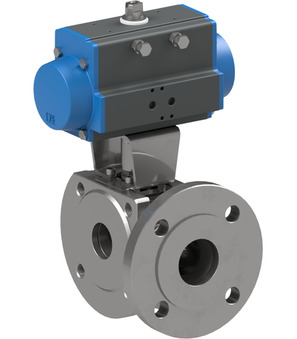

Flanged ball valve with pneumatic actuator Series BAMA, BAUA; 3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Reduced bore; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 25mm; DN ball 20mm; Length 46mm; Actuator PAD052; Ball L
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
Country of origin: Italy
Weight: 1.92 Kg
Short Itemnumber: BAMA025SSTVD0ABS51C00122C002316
BAMA-025-SSTV-D0
flanged ball valve with pneumatic actuator series BAMA, BAUA; 3-way-type; sealing on two sides; pressure inlet just in front; flange PN16; body, ball AISI 316; seals PTFE/FKM; reduced bore; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 25mm; DN ball 20mm; length 46mm; actuator PAD052; ball L
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-22
coil type C001; connector size 22mm; voltage 230V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
