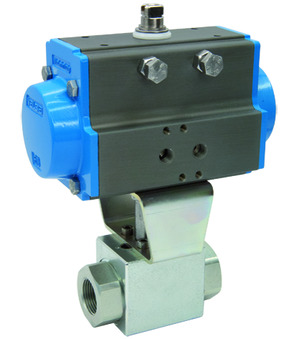

Ball valve with pneumatic actuator BAH1-004-UCPN-D0-ABS54-C001-04-C002-31-6
Ball valve with pneumatic actuator BAH7-15L-UCPN-S0
Ball valve with pneumatic actuator BAH7-15L-UCPN-S0
999.999,00 lei
999.999,00 lei
Ball valve with pneumatic actuator BAH7-16S-UCPN-S0
Ball valve with pneumatic actuator BAH7-16S-UCPN-S0
999.999,00 lei
999.999,00 lei

Ball valve with pneumatic actuator BAH1-004-UCPN-D0-ABS54-C001-04-C002-31-6

BAH1-004-UCPN-D0
Ball valve with pneumatic actuator Series BAH1; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; G 1/2"; Nominal diameter 13mm; Pressure range 0...500bar; Length 85mm; Actuator PAD063
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-04
Coil Type C001; Connector size 22mm; Voltage 12VDC / 24V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.03 Kg
Short Itemnumber:BAH1004UCPND0ABS54C00104C002316
